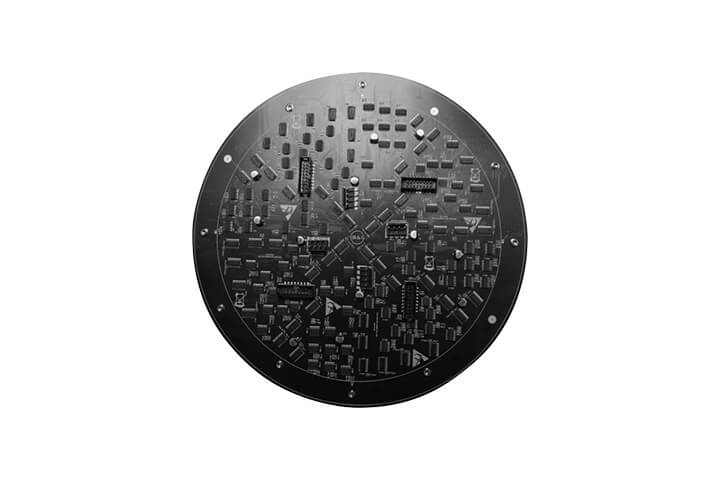

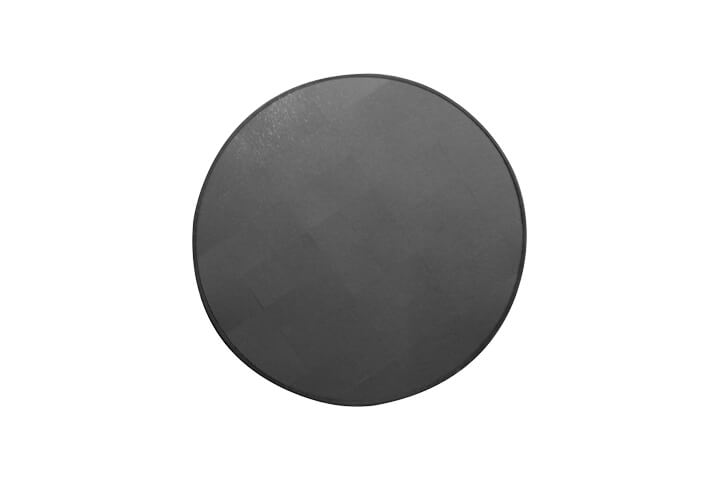

Round display
The spherical LED display has a stronger visual shocking effect, which is more eye-catching for publicity and more unique for decoration. The spherical LED display breaks the restriction of the regular shape of the traditional LED display, and appears
Product advantages:
- Flexible soft module can support any creative design
- Easy for installation and assembling
- Module mask is made of silicone, flat and transparent
Technical Parameters
Round display
| Item | Diameter 0.5m | Diameter 2.5m | Diameter 1.3m | Diameter 1.8m | Diameter 3m |
| Brightness | 800Cd/sqm | 800Cd/sqm | 800Cd/sqm | 800Cd/sqm | 800Cd/sqm |
| Chip | 5124IC | 5124IC | 5124IC | 5124IC | 5124IC |
| Package | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD2121 |
| Diameter | 0.5米 | 0.7米 | 1.3米 | 1.8米 | 3米 |
| Area | 0.19625 | 0.38465 | 1.32665 | 2.5434 | 7.065 |
| Thickness | 80mm | 80mm | 80mm | 80mm | 80mm |
| Weight | 10kg | 20kg | 30kg | 100kg | 280kg |
| Pixel Pitch | P2.5 | P2.5 | P3 | P3 | P3 |
| Pixel density | 160000 | 160000 | 111111 | 111111 | 111111 |
| Full screen points | 31400 | 61544 | 147405 | 282600 | 784999 |
| Horizontal | 120° | 120° | 120° | 120° | 120° |
| Vertical | 120° | 120° | 120° | 120° | 120° |
| Color temperature | 5000-11000k | 5000-11000k | 5000-11000k | 5000-11000k | 5000-11000k |
| Average Power | 280W | 280W | 280W | 280W | 280W |
| Max Power | 800W | 800W | 800W | 800W | 800W |
| Control System | ENBON-DZ | ||||
| Way to control | Synchronize | ||||
| Waterproof level | For indoor use only | ||||
| working temperature | ﹣20 ～﹢40℃ | ||||
