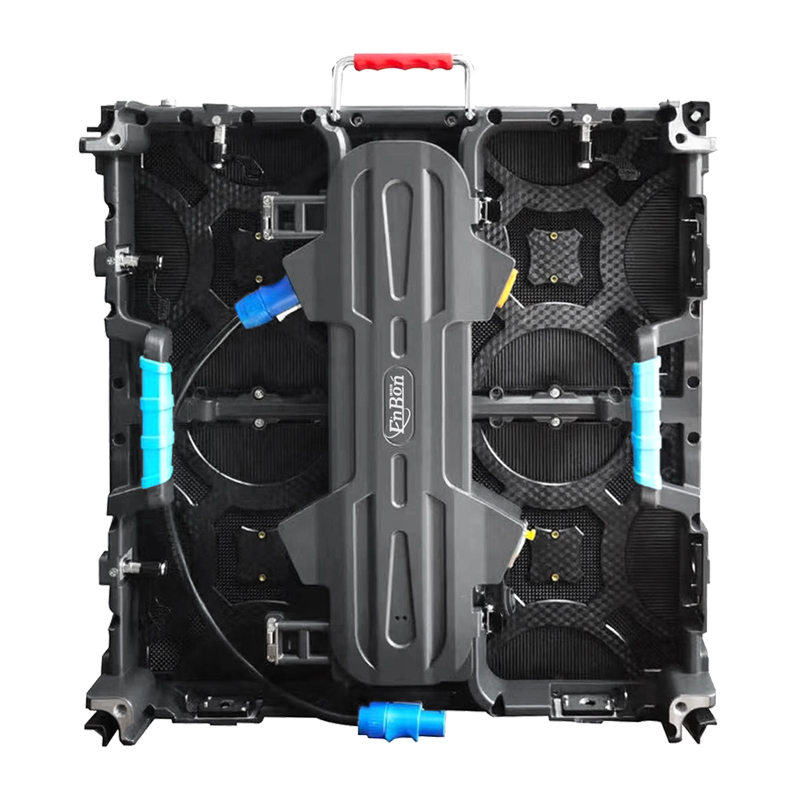

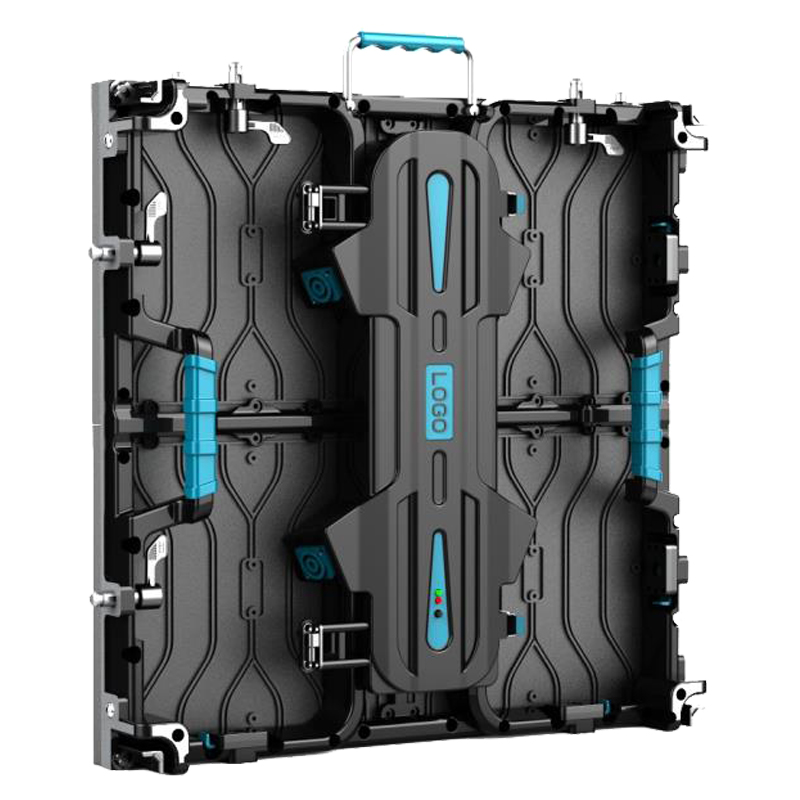

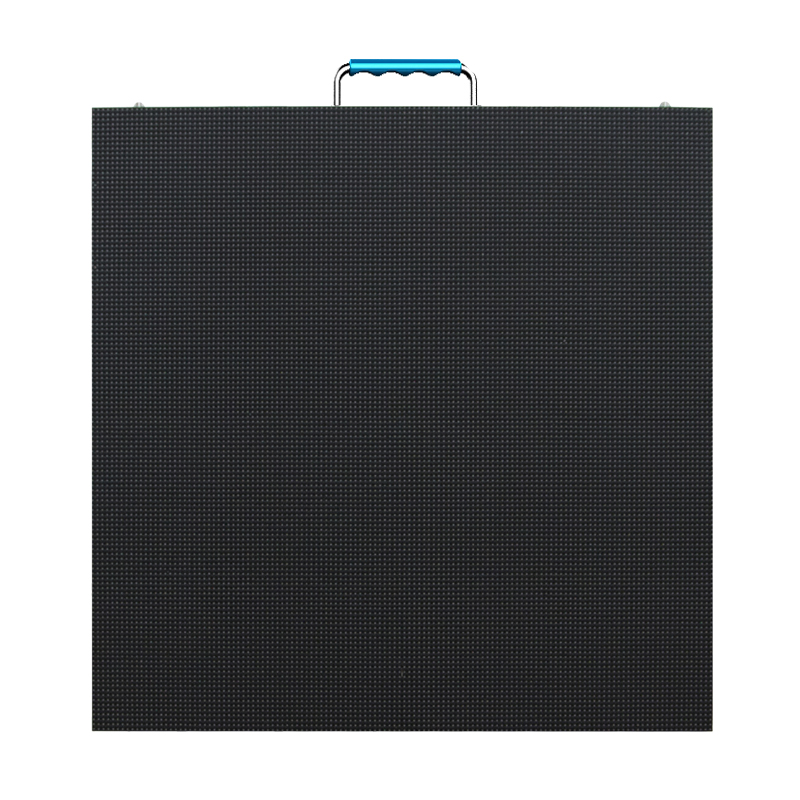

R4 Series Straight

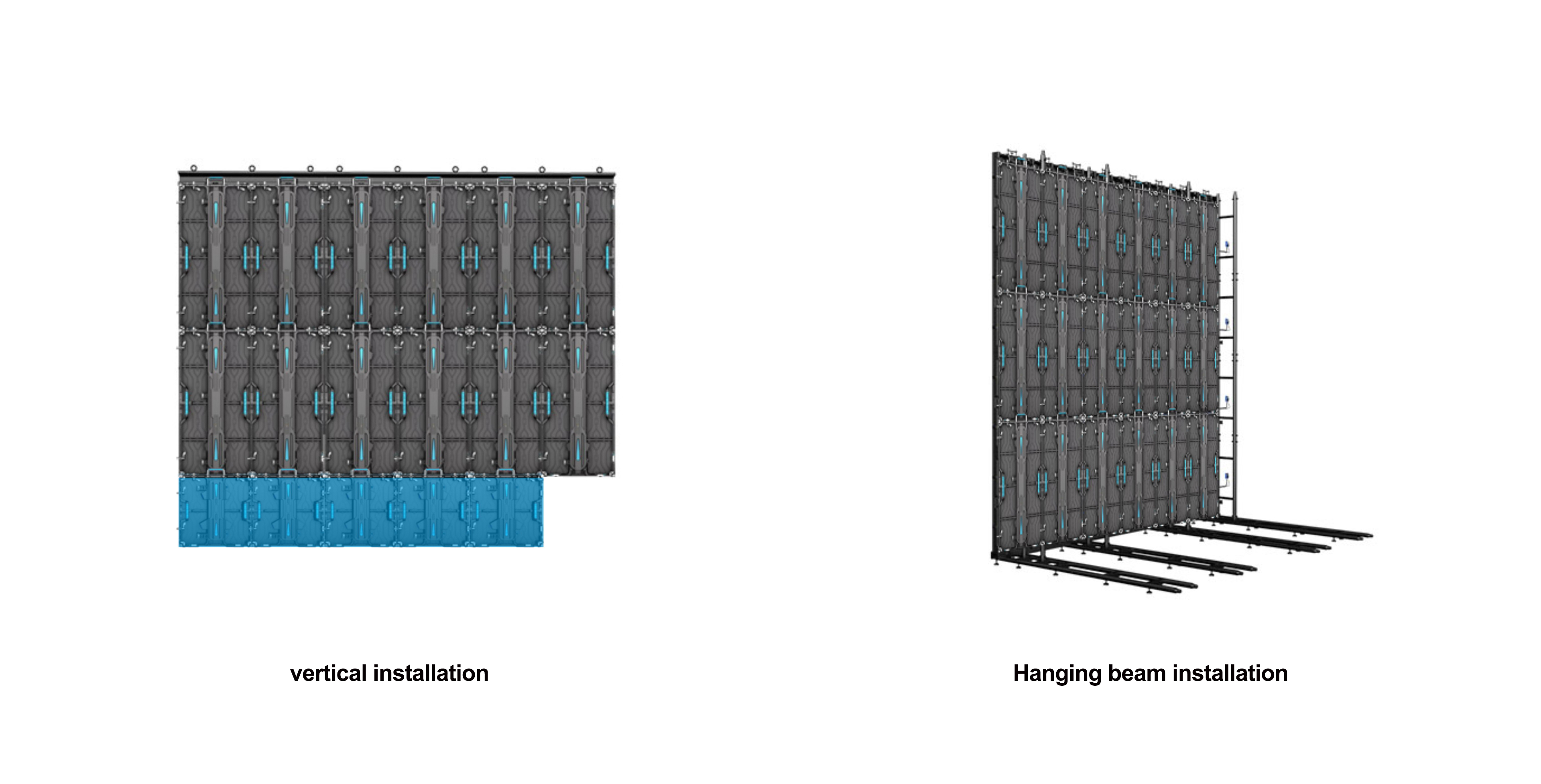

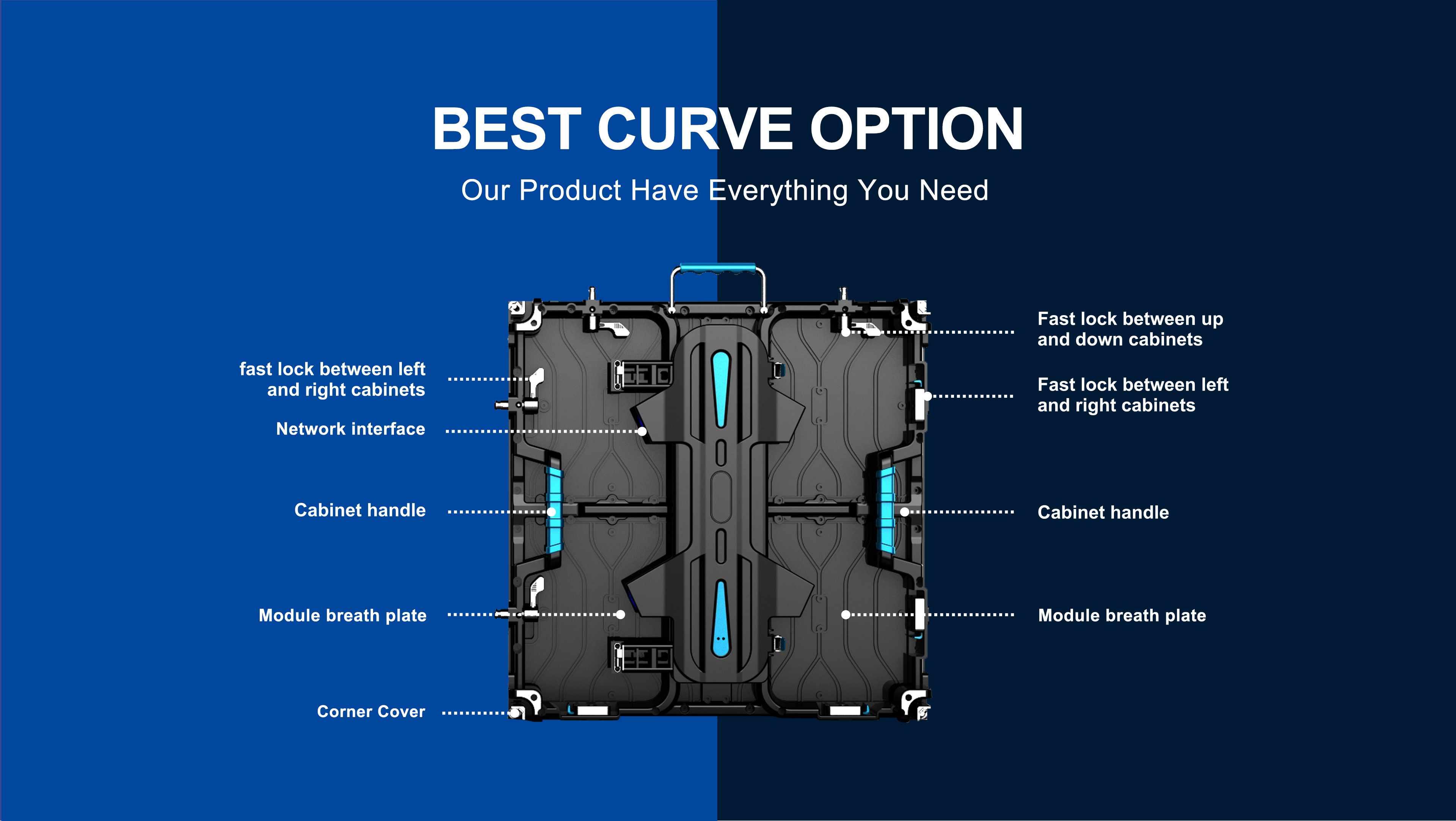

Efficient installation and uninstallation, lower cost: double side automatic locking design, support one person quick installation, use light material to make the cabinet, convenient for transportation, save labor and time cost.

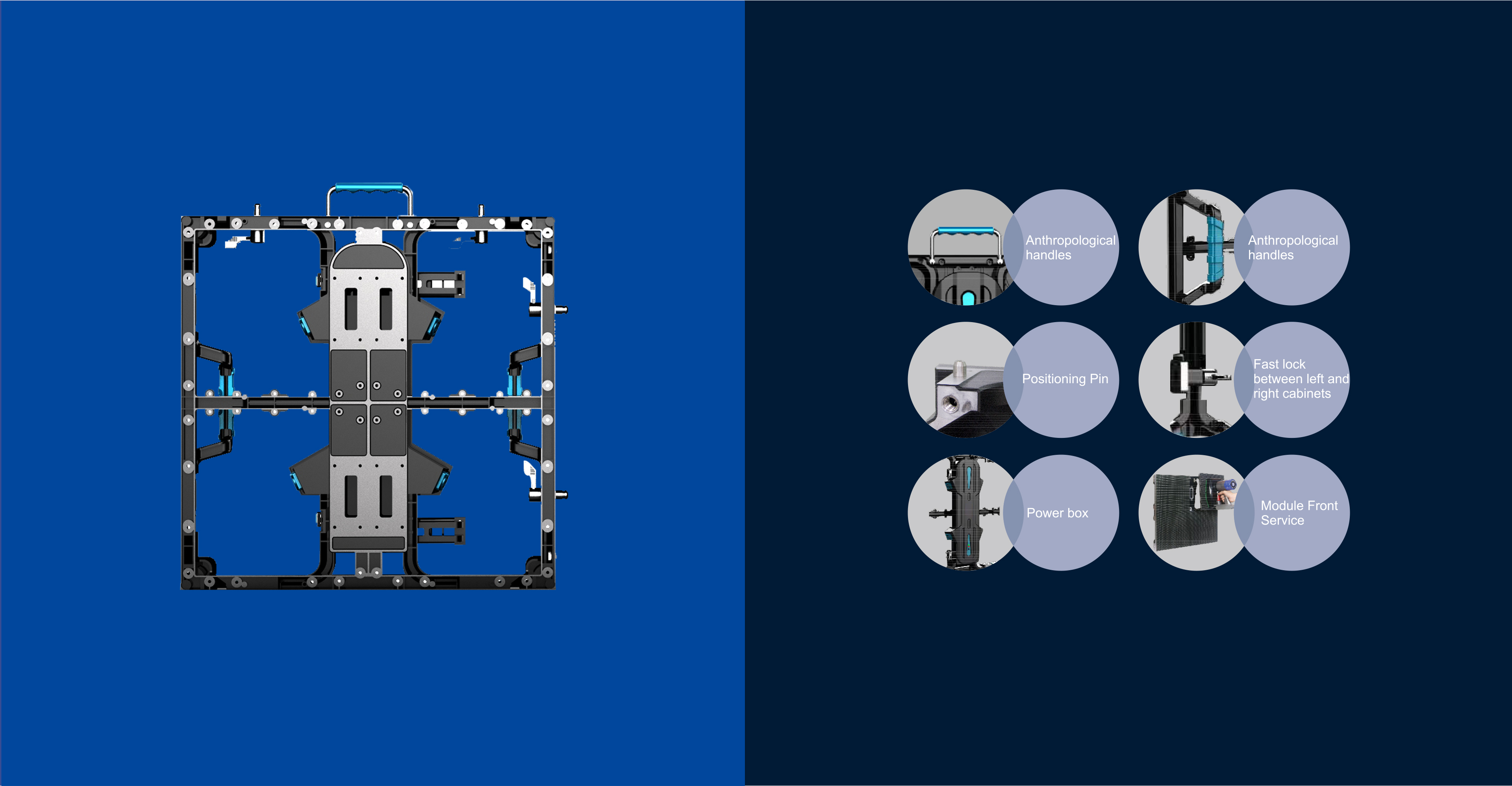

  1. Enhanced safety lock design, convenient for one person to operate independently, fast installation is more firm
  2. Anti-knock lamp design, all-round protection to avoid the direct contact between the cabinet and the ground when placing the lamp, the product is more durable
  3. Modular structure, more convenient and faster maintenance
  4. Using the modular structure design, make the module and the power box maintenance more convenient
  5. Super light and thin design, more than 20% lighter than the normal cabinet
  6. High refresh rate, high grayscale, wide color area, as always good color of Enbon
  7. Seamless screen connection, using positioning column to connect precisely , can be stitched creatively with R3-500*1000 cabinet

Get A Quote

Product Series Model

ENBON R1 seriesENBON R1 series featuresENBON R1 series best ENBON R1 series moduleENBON R1 series fast lockENBON R1 series hub & rc

Technical Parameters

R4 Series Straight

  Indoor Outdoor
Pixel Pitch 2.604 2.976 3.91 3.91 4.81
LED lamp SMD2020 SMD2020 SMD2020 SMD1921 SMD1921
Density 147456dot/m2 112896dots/m2 65536dots/m2 65536dots/m2 43264dots/m2
Brightness 1000nits 1000nits 1000nits 3500nits 3500nits
IP rating IP31 IP31 IP31 IP65 IP65
Cabinet Materiel Die-casting Aluminum Die-casting Aluminum
Scan 24scan 21scan 16scan 16scan 13scan
Module weight 0.5kg 0.5kg 0.5kg 0.5kg 0.5kg
Cabinet Weight 7.5kg 7.5kg 7.5kg 8kg 8kg
Module size 250*250mm 250*250mm 250*250mm 250*250mm 250*250mm
Cabinet size 500*500*85mm 500*500*85mm 500*500*85mm 500*500*85mm 500*500*85mm
Module pixel 96*96dots 84*84dots 64*64dots 96*96dots 52*52dots
Cabinet pixel 192*192dots 168*168dots 128*128dots 192*192dots 104*104dots
Max Power 500w/sqm 450w/sqm 400w/sqm 550w/sqm 550w/sqm
Average Power 150w/sqm 140w/sqm 130w/sqm 200w/sqm 200w/sqm
Viewing Angle Horizontal 140(+70/-70) deg     Vertical 140(+70/-70)deg
Control way synchronous/asynchronous
Brightness control 256 level
Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity 10% ~ 90%
Work temperature ﹣20 ~﹢65℃



Related parameter documents

r4 series.pdf pdf
