FC-B Series Design
Enbon FC-B series，outdoor fixed front and back Service Design. Fast lock design for easy installation and maintenance.die-cast aluminum material, ot only bring down warehouse cost but also save shipping and maintenance cost.
Product advantages:

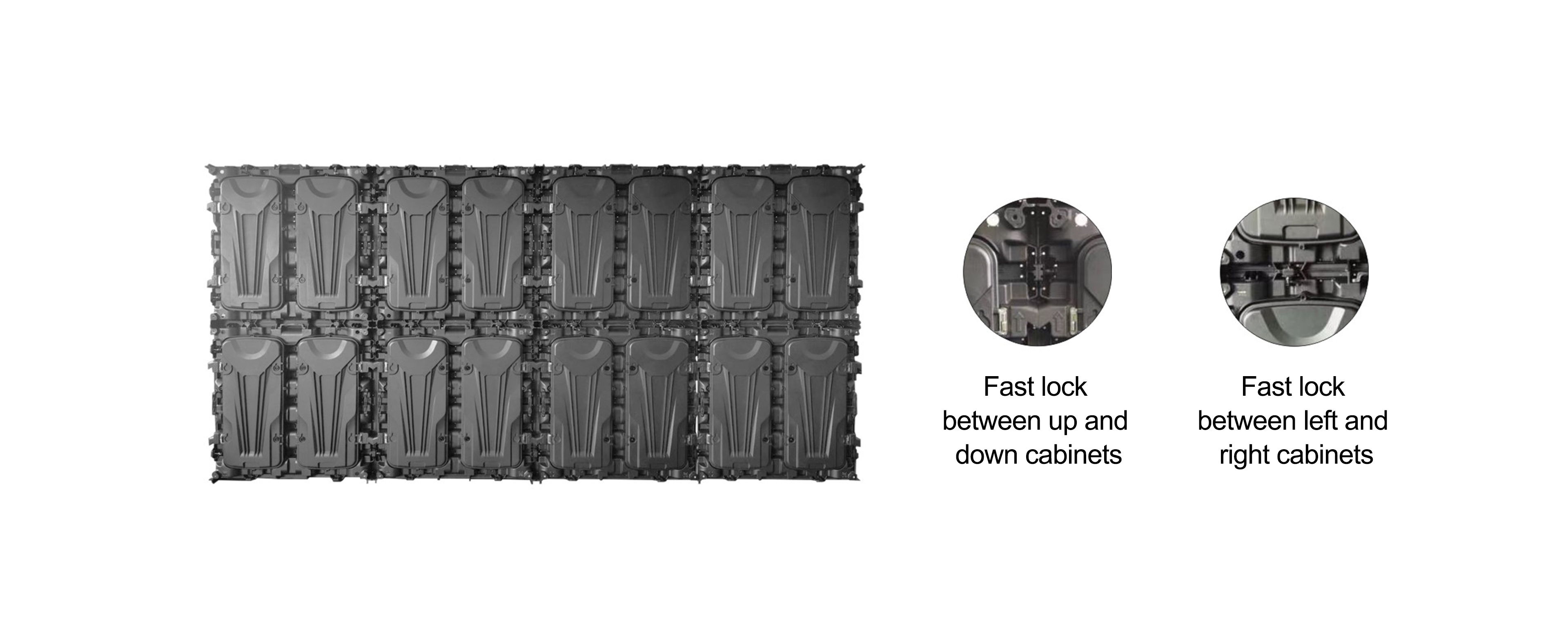

- Fast Lock Design,easy for installation and maintenance
- Stitching Details

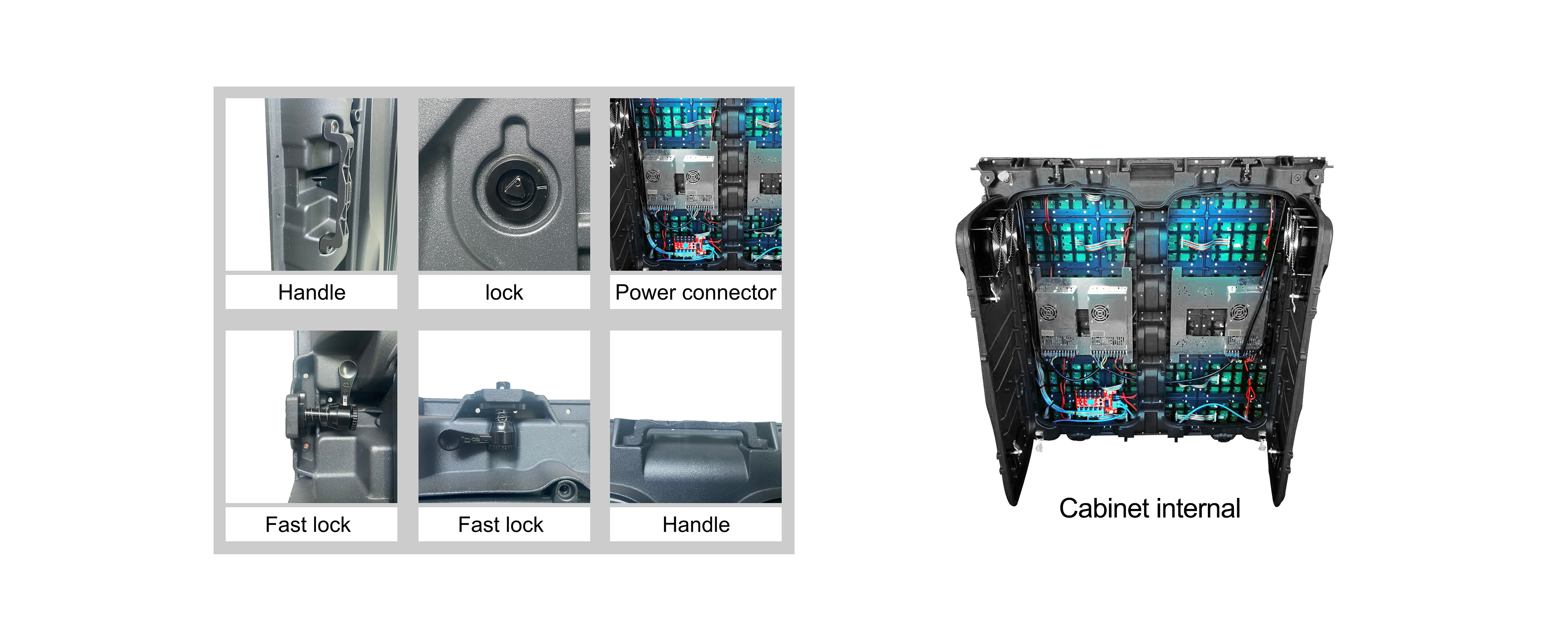

- Module, control system front&back maintenance
- Die Casting Aluminum Cabinet with high anti-corrosion, IP65/IP54 Rating.
- High refresh rate，high gray scale
-
Standard products not only bring down warehouse cost but also save shipping and maintenance cost.
Product Series Model
P4
P5.33
P6.67
P8
P10
Technical Parameters
FC-B Series Design
| Outdoor | |||||
| Pixel Pitch | P4 | P5.33 | P6.67 | P8 | P10 |
| LED lamp | SMD2727 | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Density | 62500dots/m2 | 35344dots/m2 | 22500dots/m2 | 15625dots/m2 | 10000dots/m2 |
| Brightness | 6000nits | 6000nits | 6000nits | 6000nits | 6500nits |
| IP rating | IP65 | IP65 | IP65 | IP65 | IP65 |
| Cabinet Materiel | Die-casting Aluminum | Die-casting Aluminum | |||
| Scan | 1/10scan | 1/8scan | 1/5scan | 1/4scan | 1/2scan |
| Module weight | 1.6kg | 1.6kg | 1.6kg | 1.6kg | 1.6kg |
| Cabinet Weight | 28kg | 28kg | 28kg | 28kg | 28kg |
| Module size | 320*320mm | 320*320mm | 320*320mm | 320*320mm | 320*320mm |

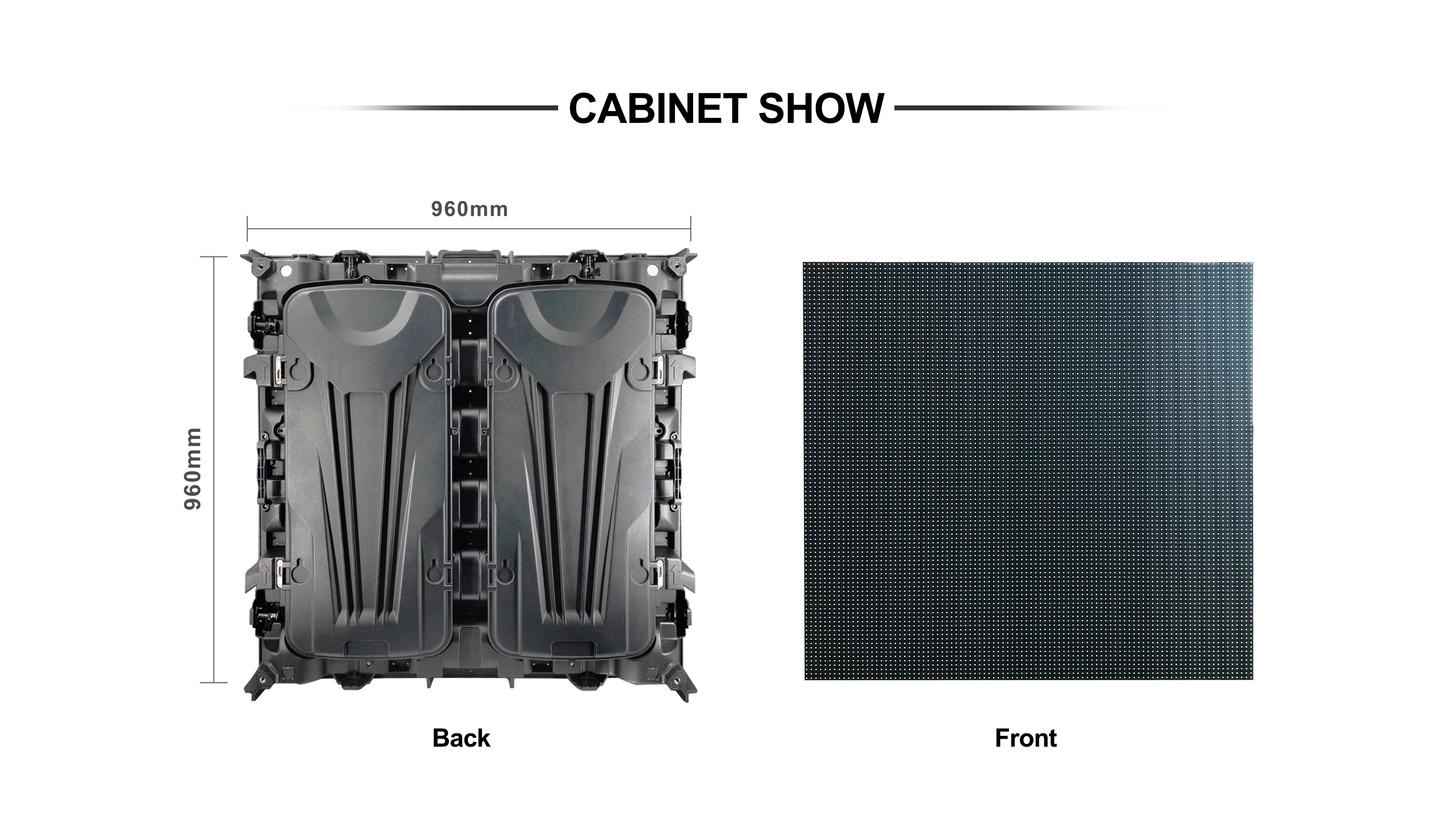

| Cabinet size | 960*960*120mm | 960*960*120mm | 960*960*120mm | 960*960*120mm | 960*960*120mm |
| Module pixel | 80*80dots | 60*60dots | 48*48dots | 40*40dots | 32*32dots |
| Cabinet pixel | 240*240dots | 180*180dots | 144*144dots | 120*120dots | 96*96dots |
| Max Power | 850w/sqm | 800w/sqm | 850w/sqm | 800w/sqm | 700w/sqm |
| Average Power | 300w/sqm | 380w/sqm | 300w/sqm | 380w/sqm | 240w/sqm |
| Viewing Angle | Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg | ||||
| Control way | synchronous/asynchronous | ||||
| Brightness control | 256 level | ||||
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | ||||
| Work humidity | 10％ ～ 90％ | ||||
| Work temperature | ﹣20 ～﹢65℃ | ||||
