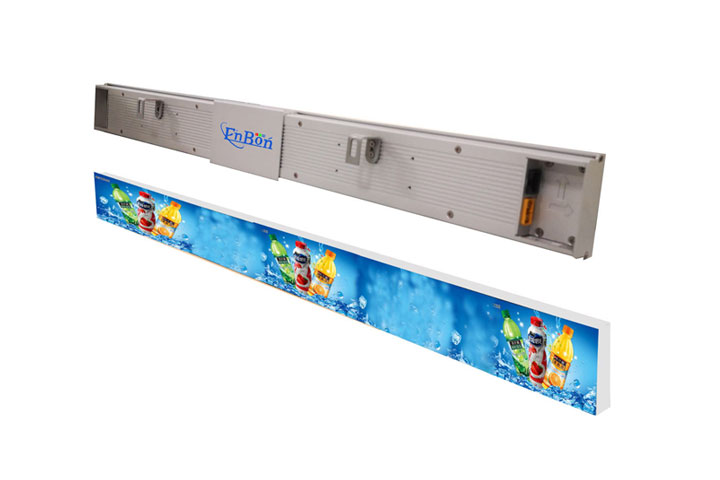

COB Series Shelf

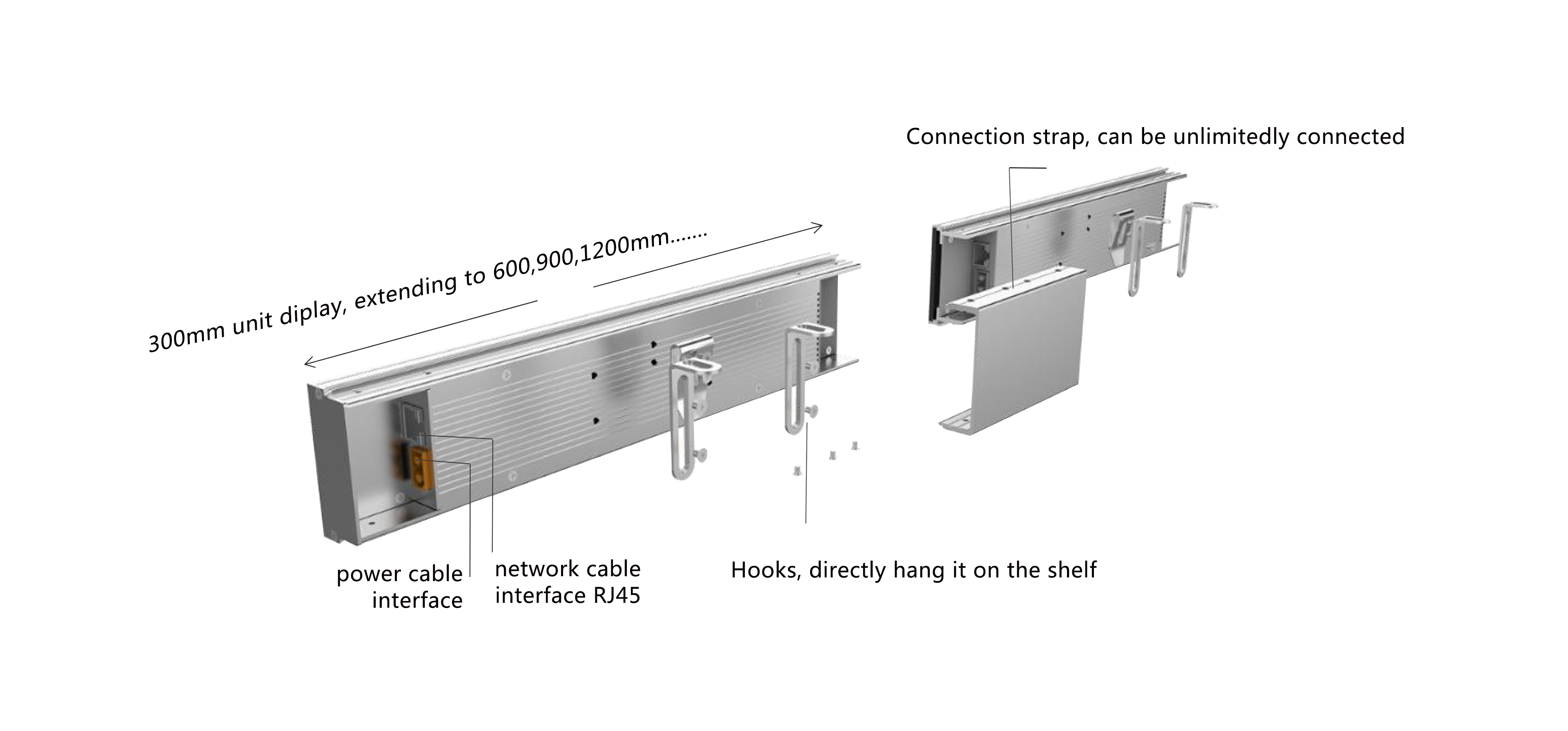

300mm unit display,extending to 600,900,1200mm etc. Connection strap can be unlimitedly connected, network cable interface RJ45 Hooks,directly hang it on the shelf.
Product advantages:
- Waterproof,Anti-collision,anti-static
- Multiple pixel pitch,multiple sizes
- multiple color options :one color ,double color,full color
- support synchronic/asynchronic
Product Series Model
T6
T9
T12
Technical Parameters
COB Series Shelf
| Items | T6 | T9 | T12 |
| Pixel Pitch | 1.25mm | 1.25mm | 1.25mm |
| LED Configuration | Customerized | Customerized | Customerized |
| LED Encapsulation | COB | COB | COB |
| Module Size | 150mm*56.25mm | 150mm*56.25mm | 150mm*56.25mm |
| Module Resolution | 120*45 | 120*45 | 120*45 |
| Scanning Mode | 1/45 | 1/45 | 1/45 |
| Weight | 0.78kg | 1.16kg | 1.54kg |
| L*W*H(mm) | 600*60*20 | 900*60*20 | 1200*60*20 |
| Grey Scale | 16bit | 16bit | 16bit |
| Contrast Ratio | 10000:1 | 10000:1 | 10000:1 |
| Input Signal | DVI,HDMI,USB,SD | DVI,HDMI,USB,SD | DVI,HDMI,USB,SD |
| Thickness | 20mm | 20mm | 20mm |
| Working Temperature | 40℃~60℃ | 40℃~60℃ | 40℃~60℃ |
| Working Humidity | 10%-90% | 10%-90% | 10%-90% |
| PSU | 100/240v,DC5v,50/60Hz | ||
| Power supply | External | ||

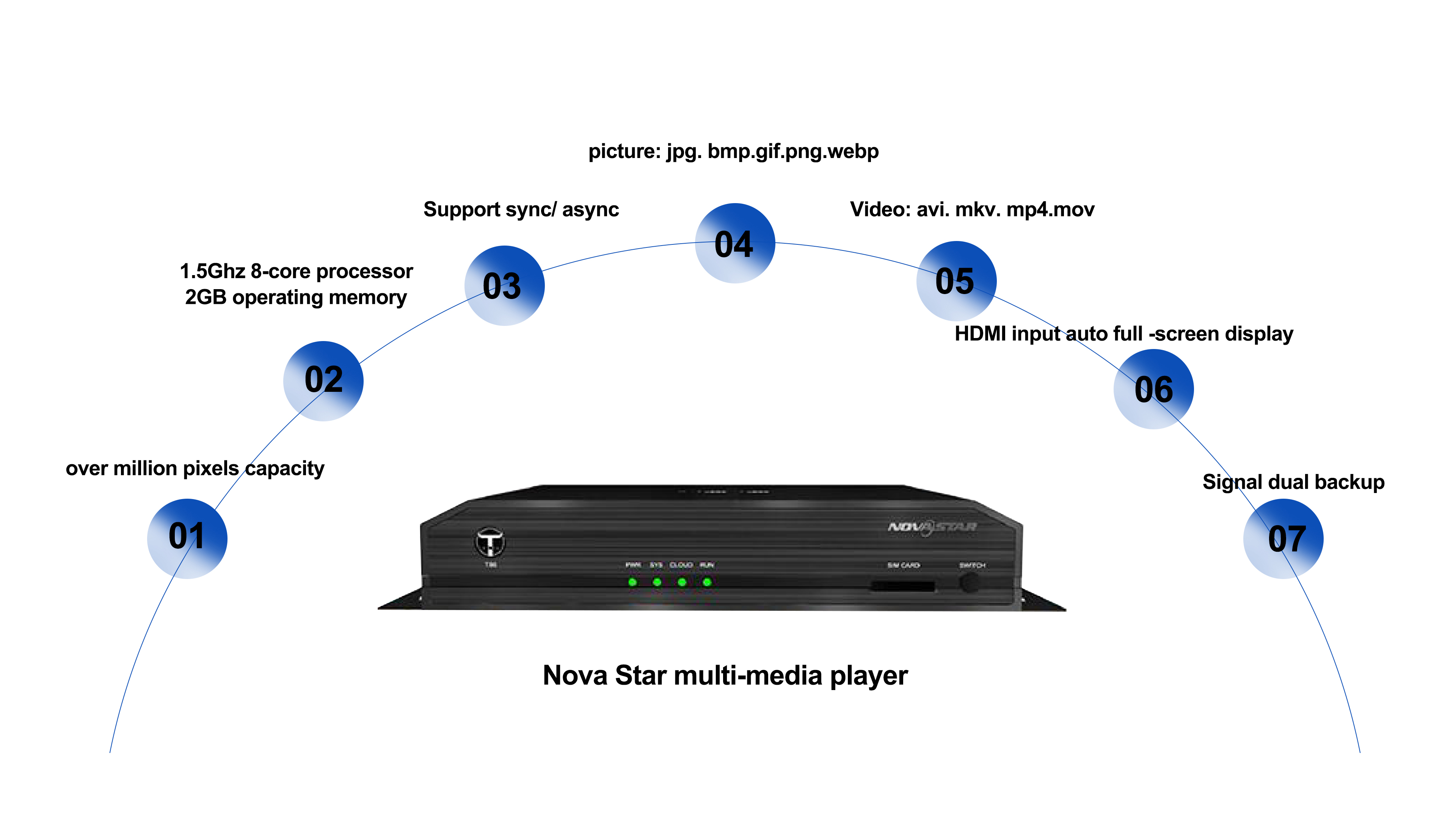

| Multimedia player | Nova TB4/6/8 | ||
