R5 Series Curve

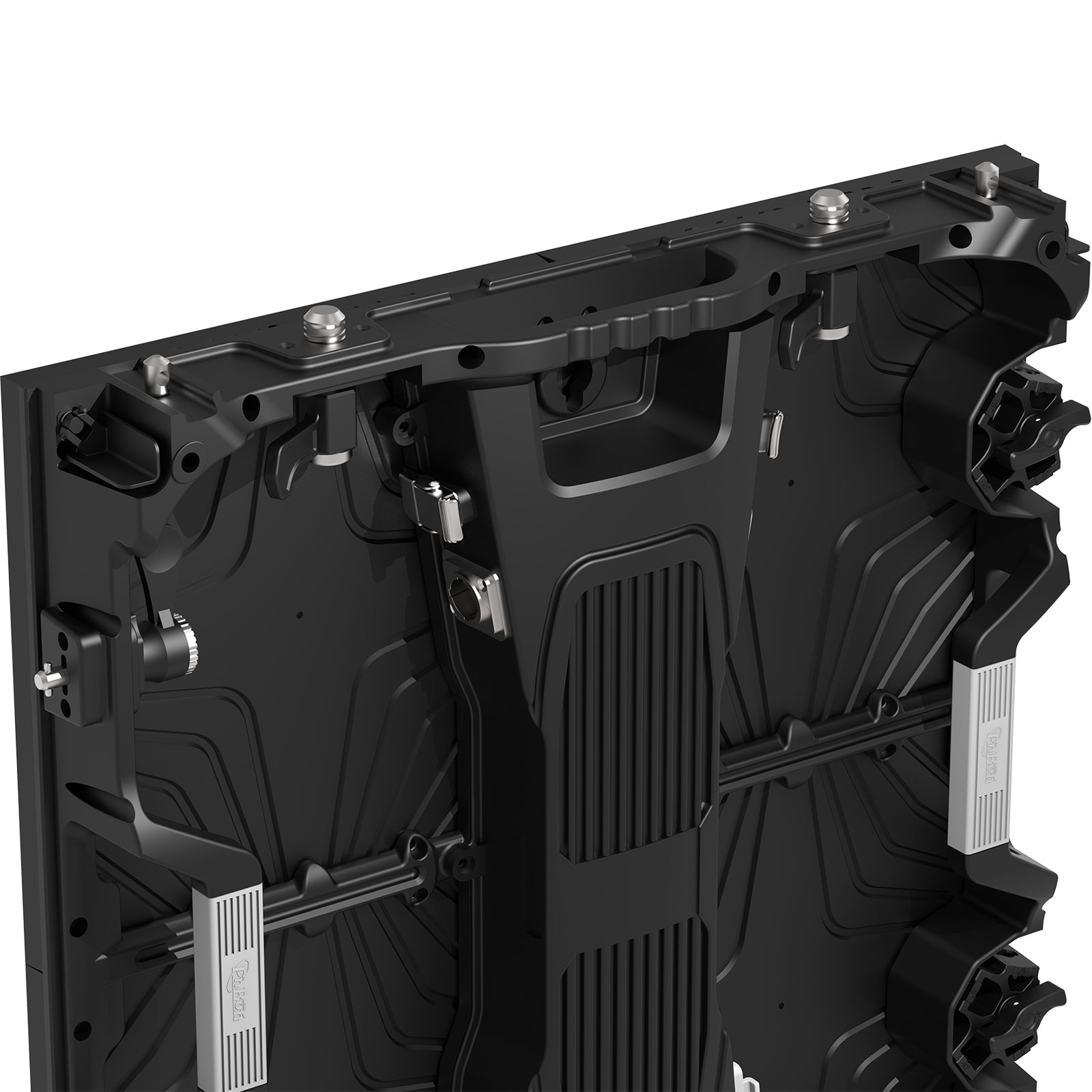

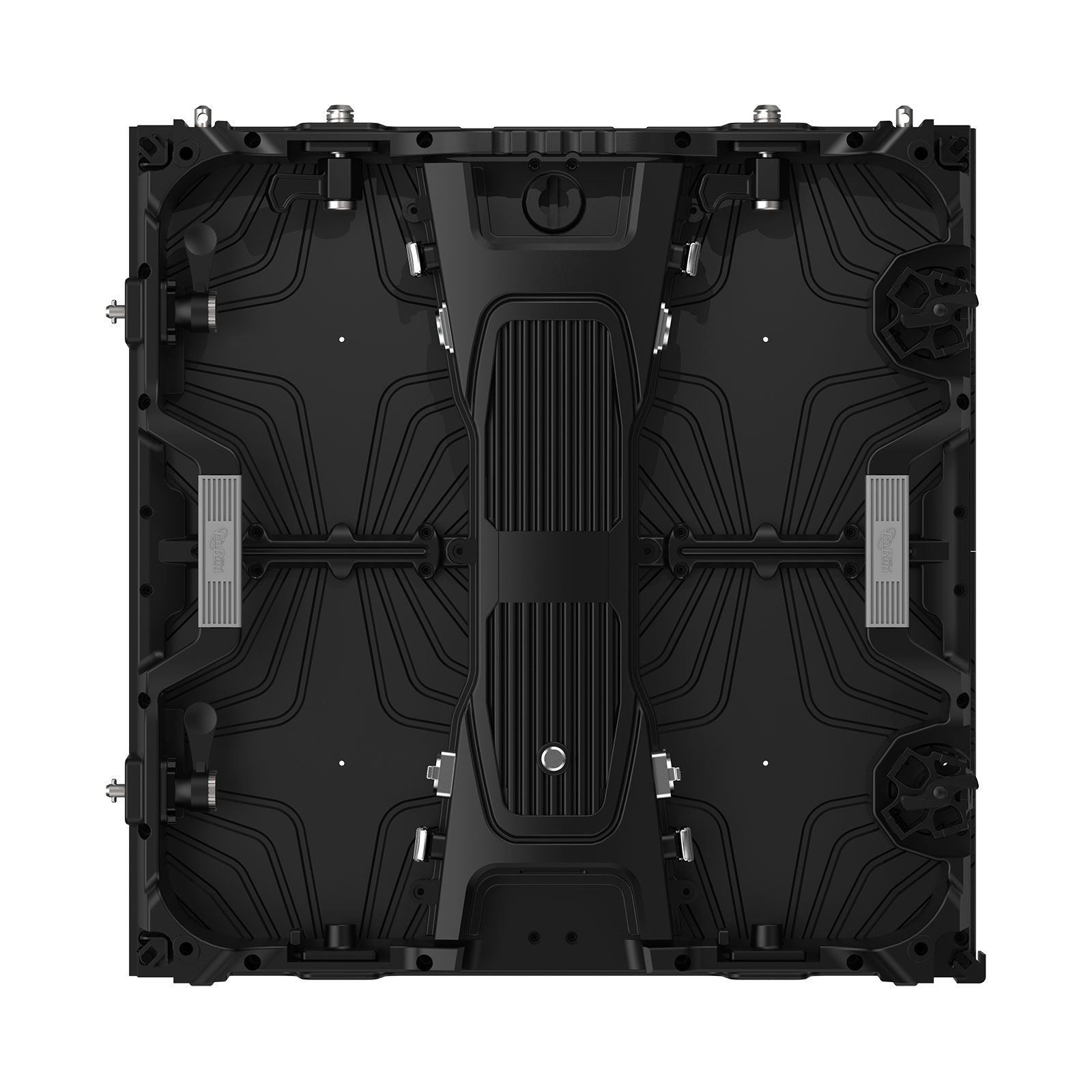

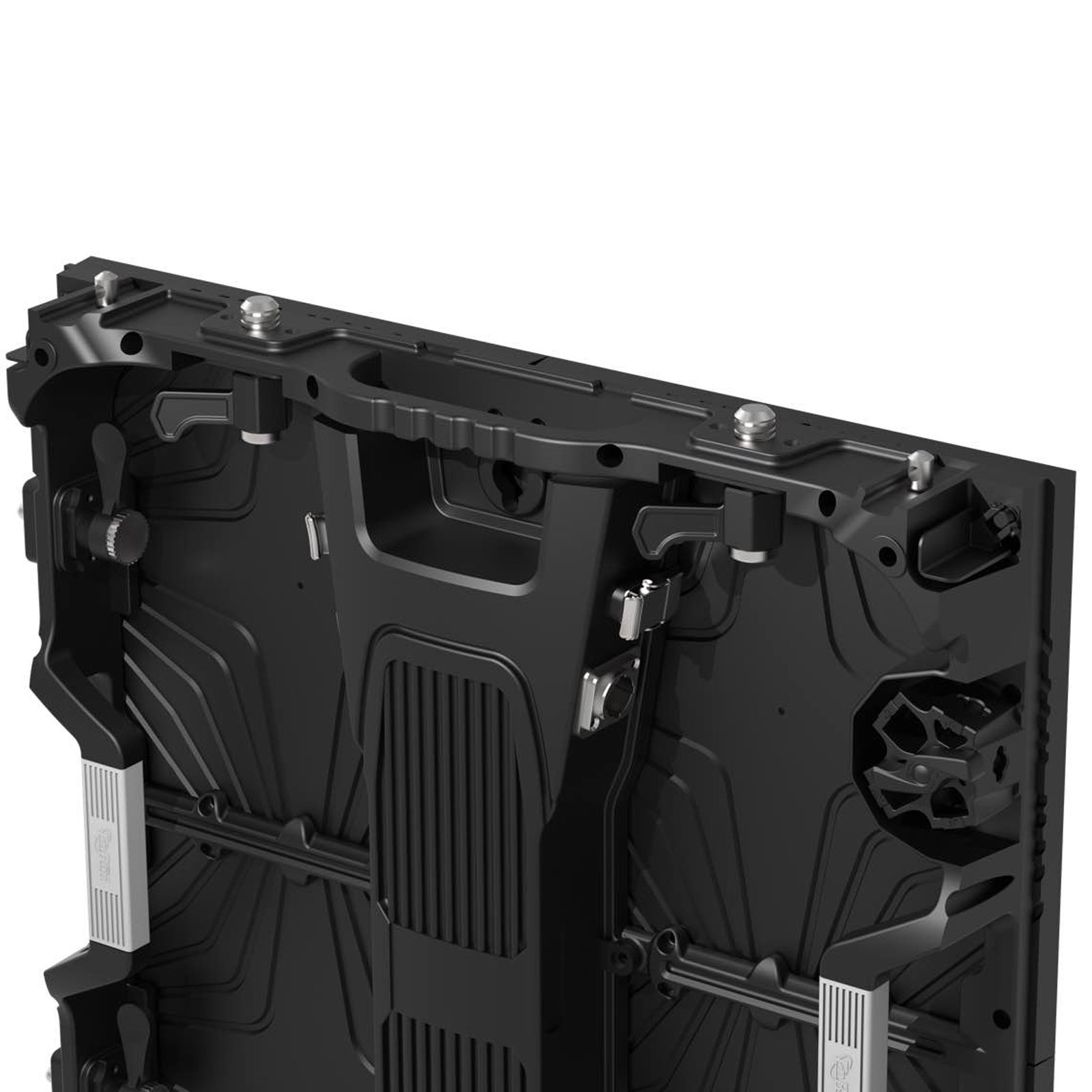

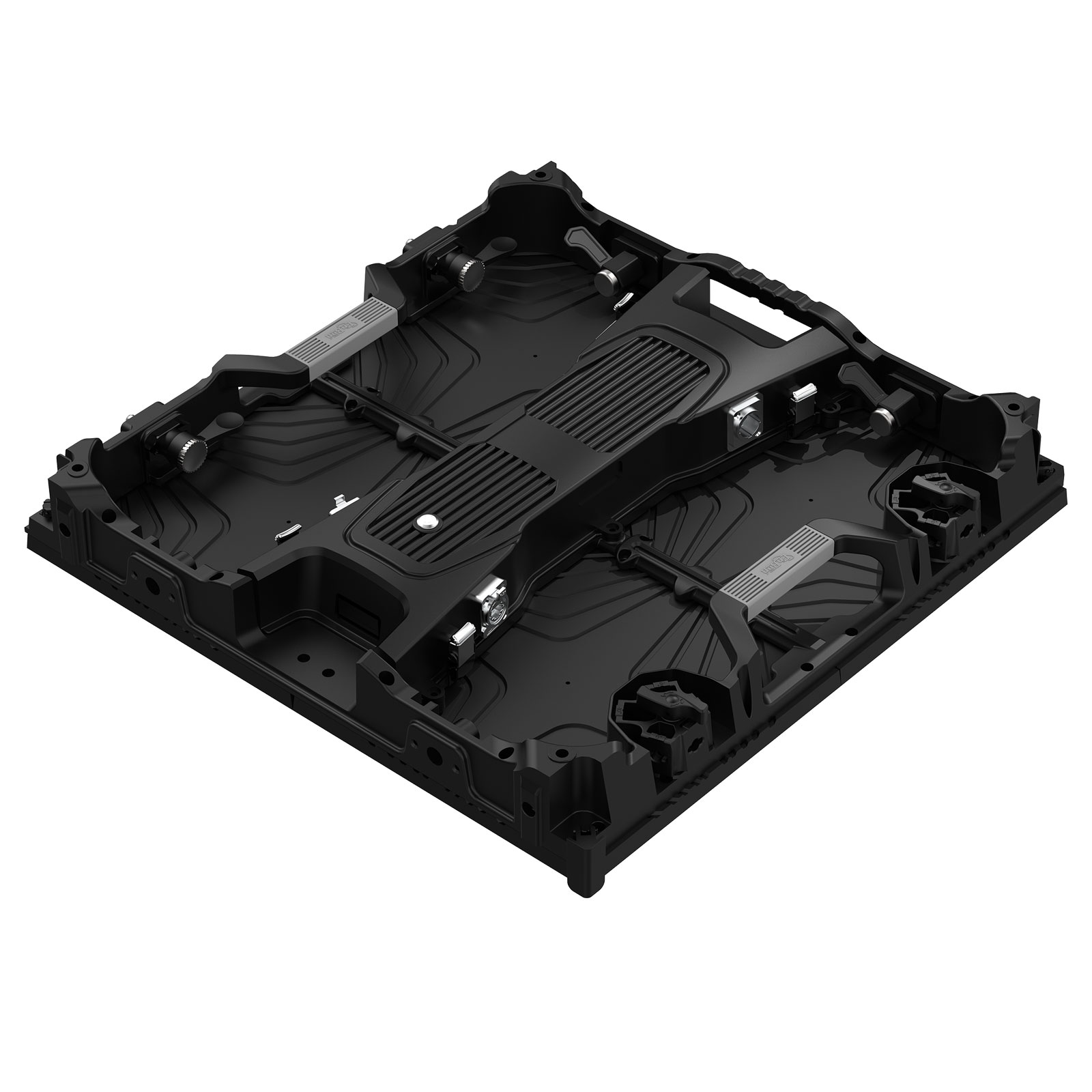

China Enbon led display manufacturer R5 series rental screens.It has straight and curve options, curve angle is ±6° or ±3°.It can be installed quickly by one-hand operation.The ergonomic design fits your hand shape, easy to grip the cabinet.

Product advantages:

  1. Integrated cabinet design saves maintenance time
  2. Plane lock and radian lock are integrated to support a variety of scene applications
  3. Radian lock support ± 6 ° / ± 3 °
  4. Modular design of power control cabinet, no wire is needed to connect the module
  5. The wireless material distribution inside the power cabinet is clean and tidy, and the signal is stable
  6. The cabinet is light and thin
  7. Unique module design, support module left and right interchangeably
  8. Private design of PCB, no signal interference, 2.0mm thickness, stable performance
  9. Mask private mold design, wide viewing angle, no reflection, showing better picture effect

Get A Quote

Product Series Model

R5 series

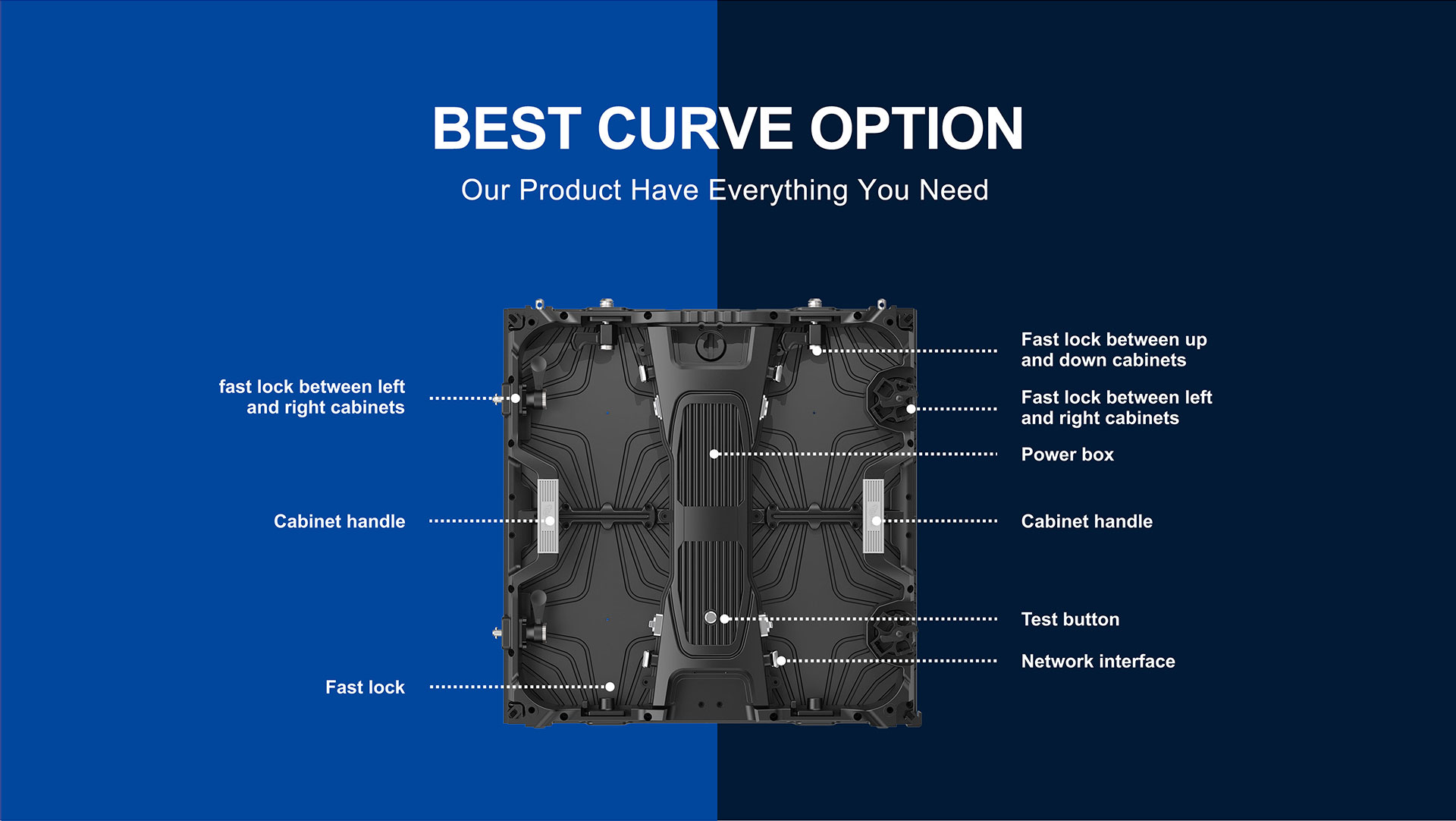

R5 series advantages

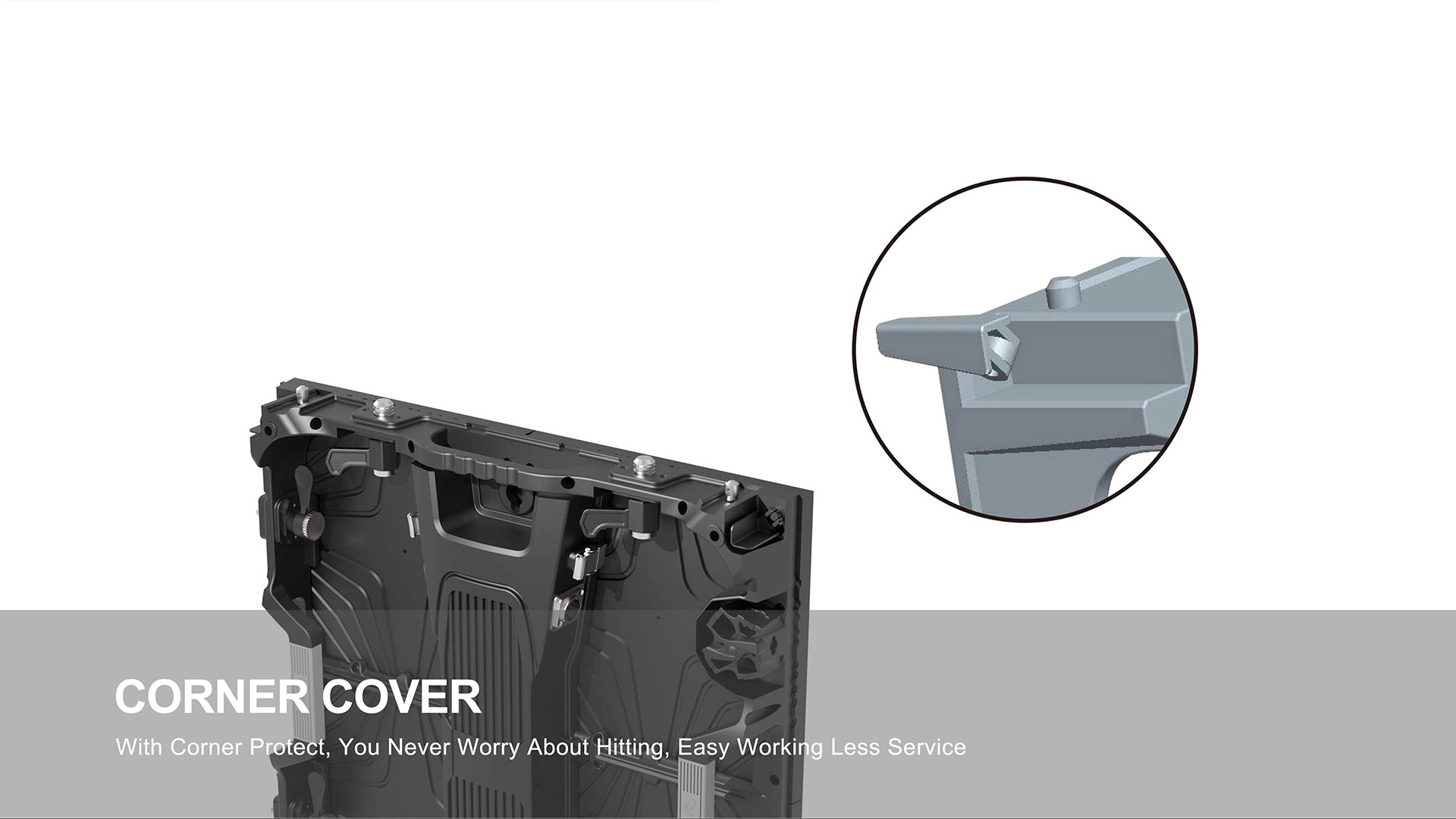

corner cover

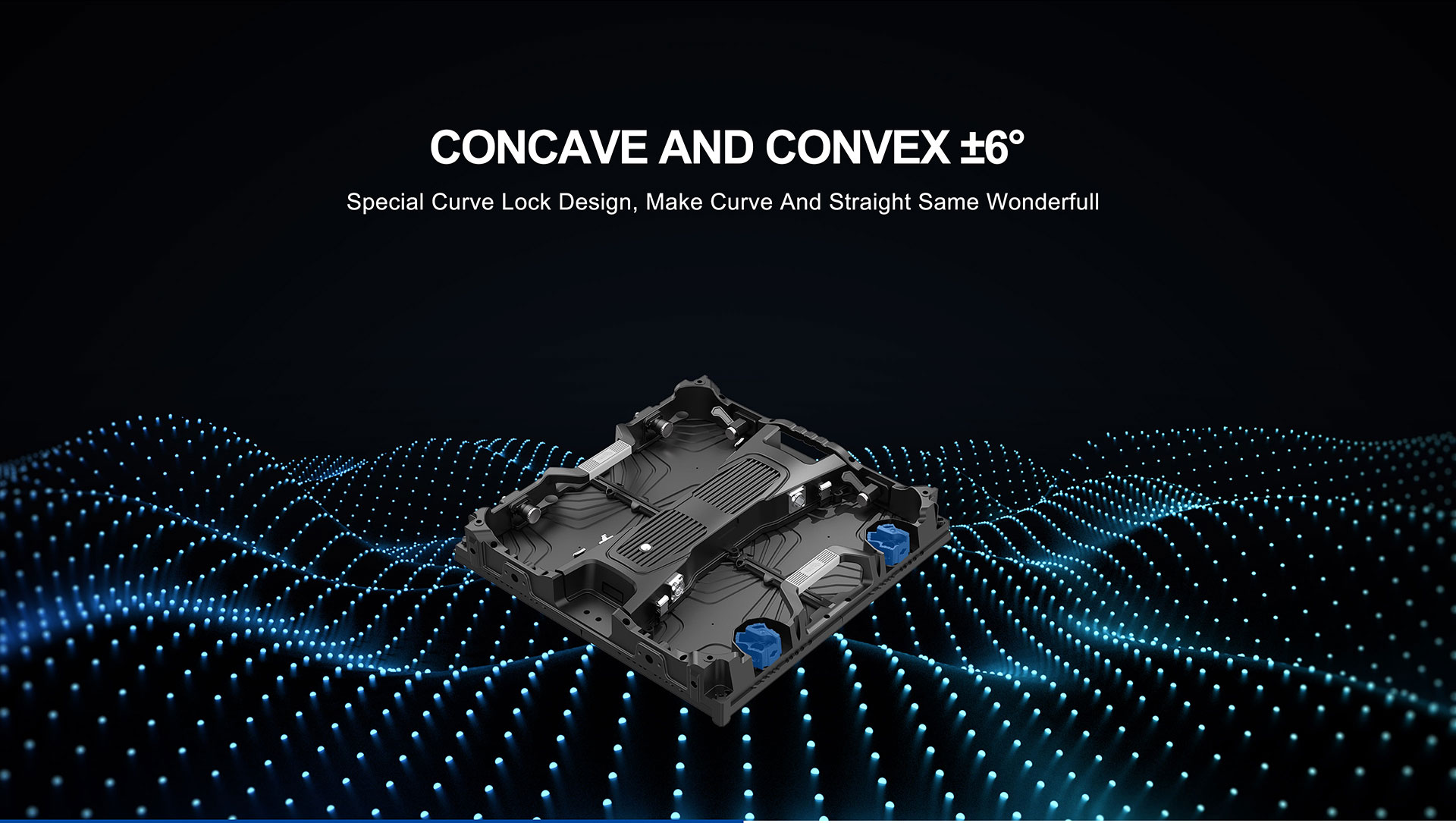

concave and convex +6

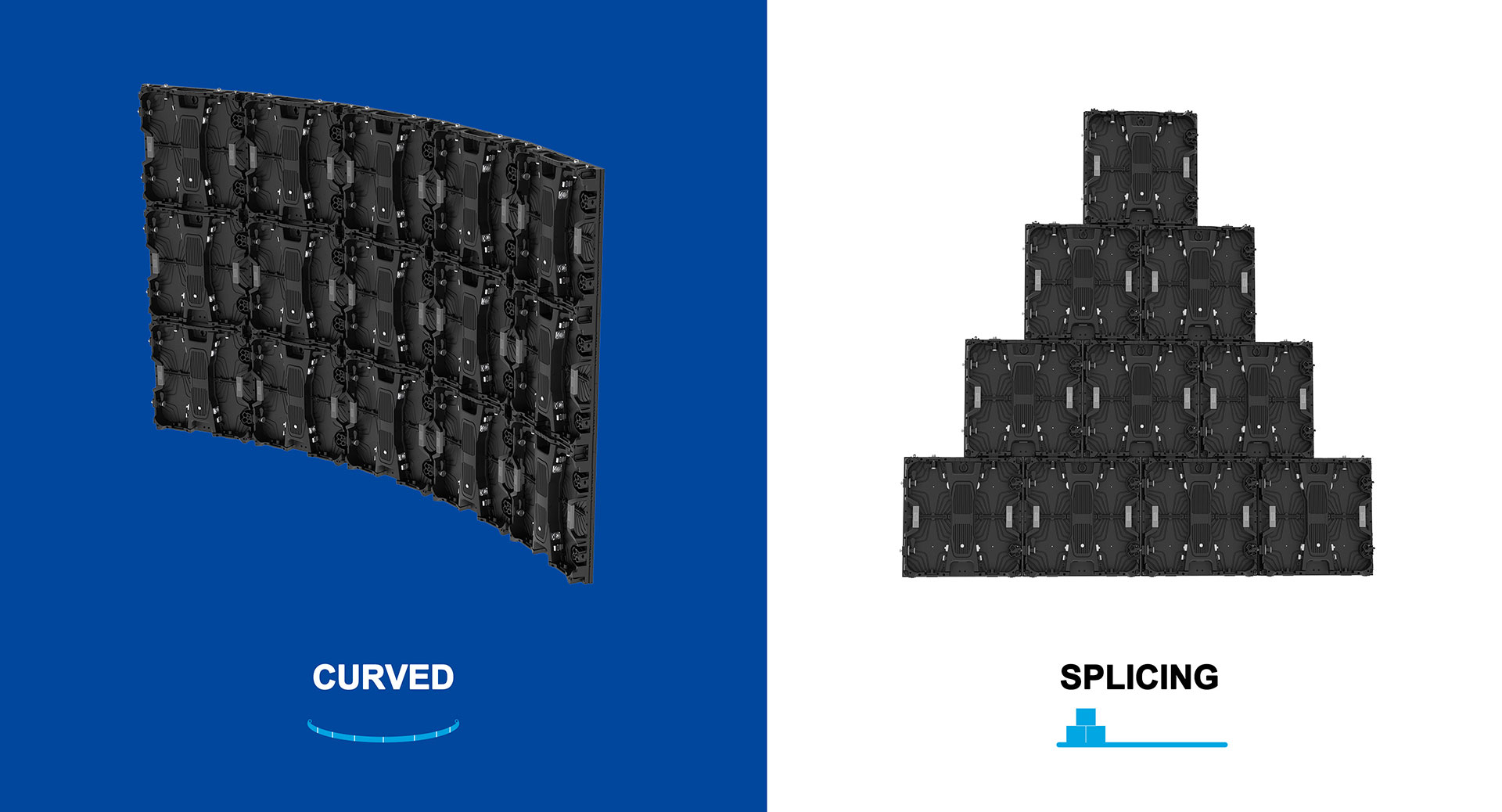

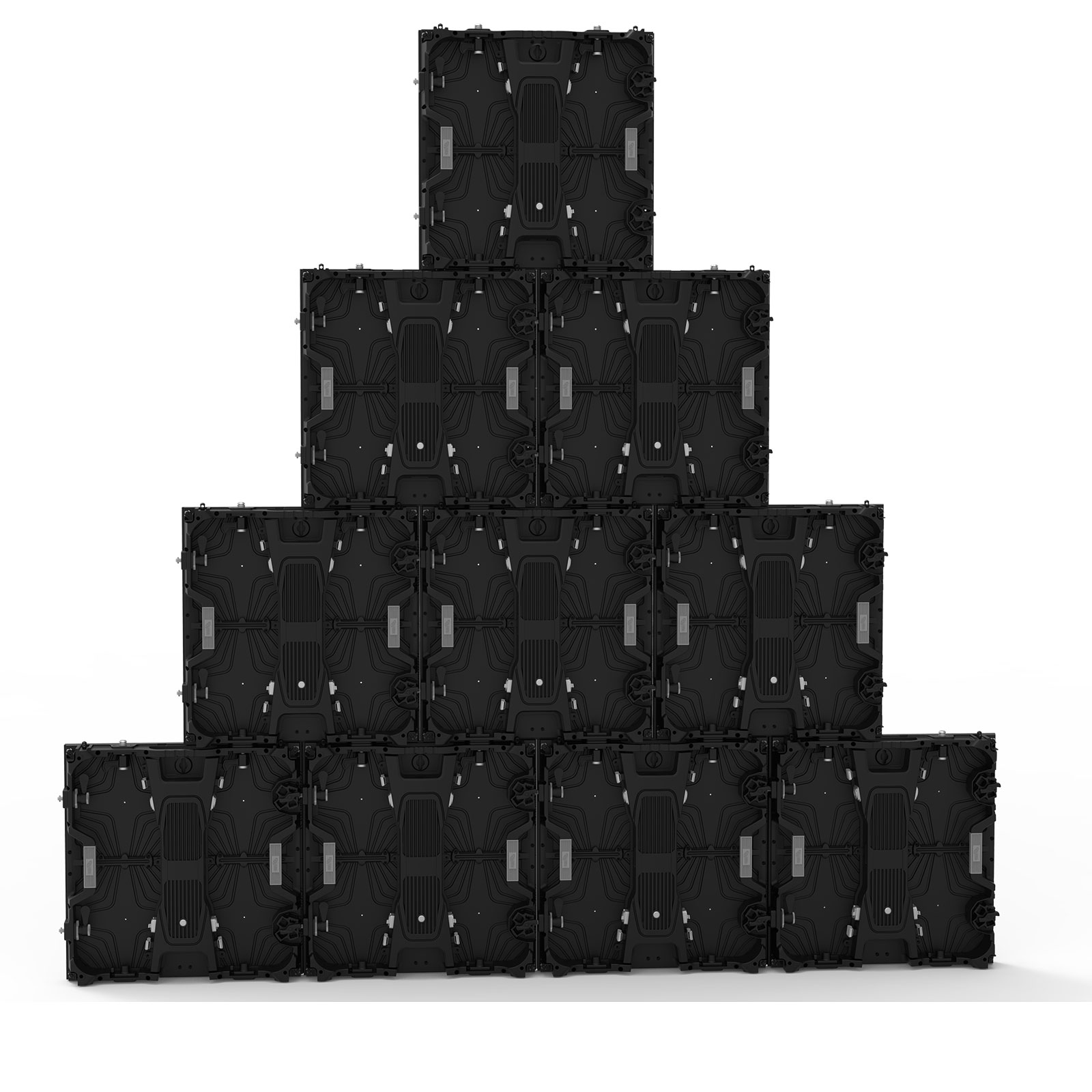

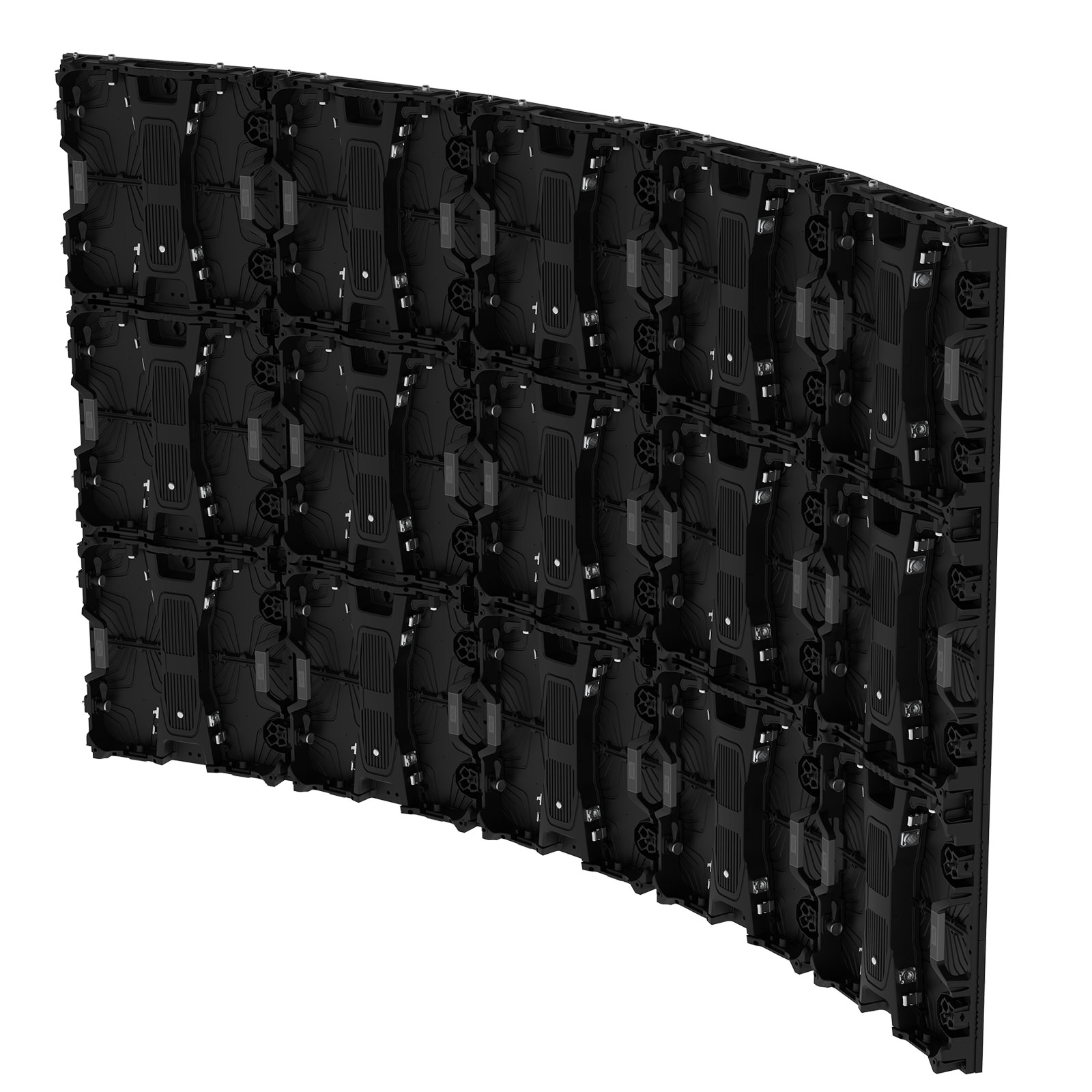

curved or splicing

Technical Parameters

R5 Series Curve

Item Indoor Outdoor
Pixel Pitch 2.604 2.976 3.91 4.81 3.91 4.81
LED lamp SMD2020 SMD2020 SMD2020 SMD2020 SMD1921 SMD1921
Density 147456dots/m2 112896dots/m2 65536dots/m2 43264dots/m2 65536dots/m2 43264dots/m2
Brightness 800-1000nits 800-1000nits 800-1000nits 800-1000nits ≥ 3500nits ≥ 3500nits
IP rating IP31 IP31 IP31 IP31 IP65 IP65
Cabinet  Materiel Die-casting Aluminum Die-casting Aluminum
Scan 24scan 21scan 16scan 13scan 16scan 13scan
Module weight 0.5kg 0.5kg 0.5kg 0.5kg 0.5kg 0.5kg
Cabinet Weight 7.5kg 7.5kg 7.5kg 7.5kg 8kg 8kg
Module size 250*250mm 250*250mm 250*250mm 250*250mm 250*500mm 250*500mm
Cabinet size 500*500*85mm 500*500*85mm 500*500*85mm 500*500*85mm 500*500*85mm 500*500*85mm
Module pixel 96*96dots 84*84dots 64*64dots 52*52dots 64*128dots 52*104dots
Cabinet pixel 192*192dots 168*168dots 128*128dots 104*104dots 128*128dots 104*104dots
Max Power  500w/sqm 500w/sqm 500w/sqm 500w/sqm 550w/sqm 550w/sqm
Average Power  160w/sqm 160w/sqm 160w/sqm 160w/sqm 200w/sqm 200w/sqm
Viewing Angle Horizontal 140(+70/-70) deg               Vertical 140(+70/-70)deg
Control way synchronous/asynchronous
Brightness control 256 level
Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity 10% ~ 90%
Work temperature  ﹣20 ~﹢65℃
