Year： 2019

location： Seoul,Korea

Area： 6.5*3m 2 set,12*4m 1 set,total 87sqm

Brief：Seoul rental screen, South Korea
ENBON outdoor p4.81 R1 series display screen is perfectly installed on the rental site of Korean TV station.

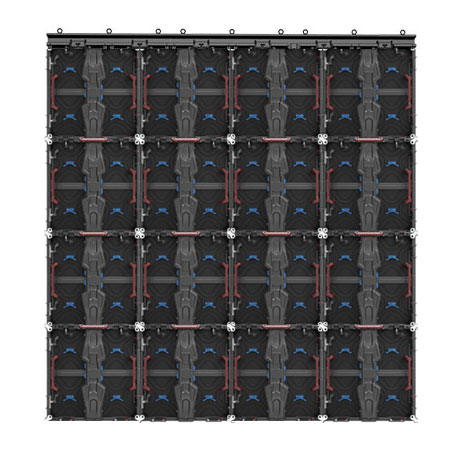

Light and thin aluminum magnesium alloy cabinet.
The cabinet design conforms to the human body mechanics, which can be installed and disassembled by a single person, saving time and reducing the maintenance cost of the rental site.
The single weight of the cabinet is only 7.5kg, which supports fast installation. The wireless material module design is more concise.
The integrated design of the control cabinet protects the digital signal from interference and makes the signal transmission on the rental site more stable.
High precision and good flatness of the cabinet can be matched with arc lock which supports plane splicing, special-shaped splicing, arc splicing and it’s suitable for a variety of rental occasions.

Outdoor p4.81 led display applied in Seoul,Korea

1) The size of the screen is determined according to the ordinary screen.

2) screen should not be enlarged. The general requirement is below 6M * 10M. Exceptions for special cabinet materials and strip curtains.

3) Hanging beam at the top and bottom beam at the bottom. Hanging beams are used to hoist the screen.

4) Between the row and row box body, connect with the hoisting mechanism, and tighten the lock between the horizontal box body.

5) Hoisting mechanism is divided into gear type, tapered rod type, bolt type.

6) The bolt type is the cheapest, reliable, and troublesome to assemble. It is suitable for the case without repeated disassembly.
