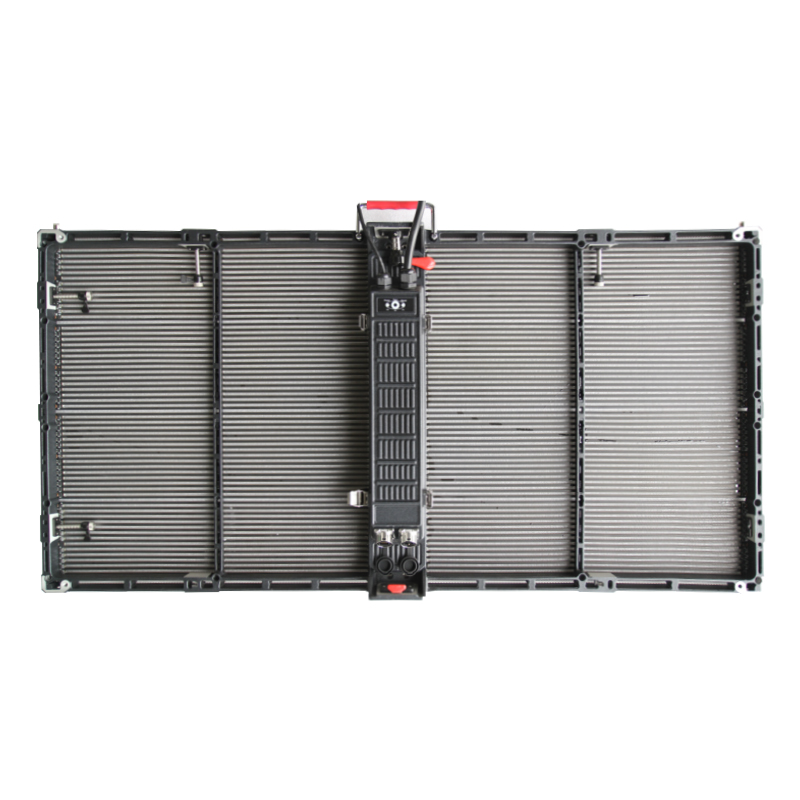

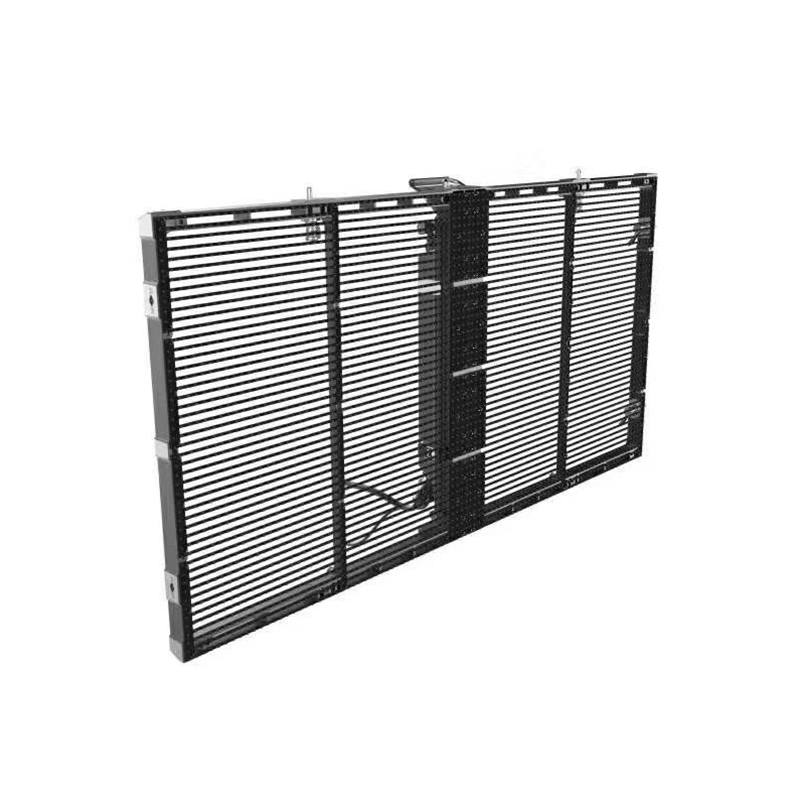

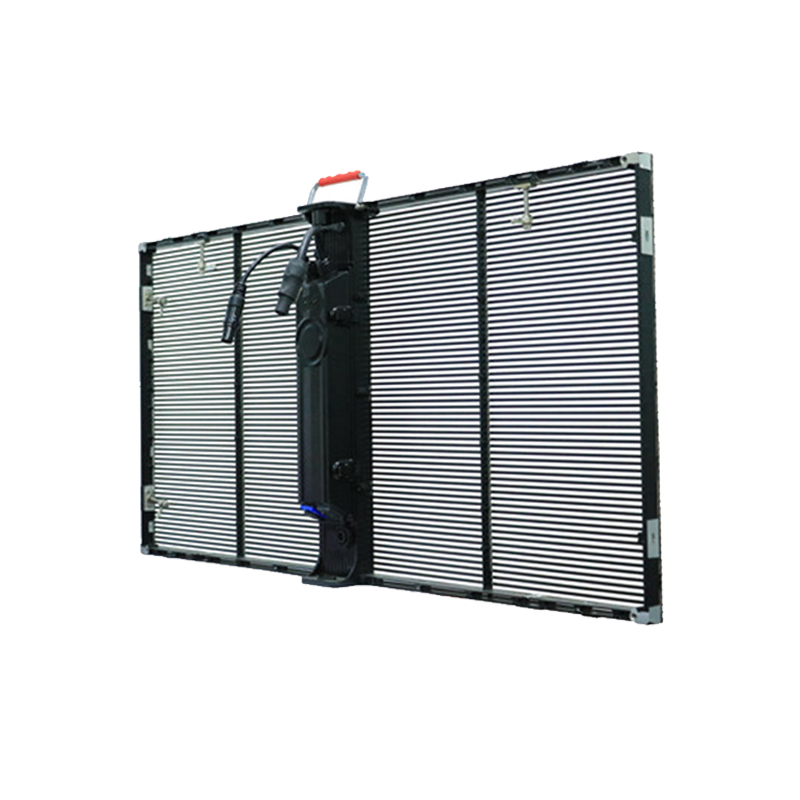

G Series Transparent
Mainly used for indoor and outdoor fixed installation.
Single-sided and double-sided display.
The cabinet is light in weight. Easy to install.
Transparent led screen, simple structure, aluminum profile structure and transparent PC panel.
Product advantages:
- Transparent screen, bright, colorful ultra-high refresh rate, Symphony, attracting attention;
- The transparent screen can be installed indoors due to its transparency. The skeleton is all movable lock, easy to install and operate, no need to remove the module, only need to replace the unit parts, maintenance is simple and saves manpower.
- Transparent screen, because the lamp beads and strips are exposed, and the texture is light, the highest protection level is IP46. Due to the specific requirement for transparency, the minimum spacing can achieve the clear effect of P3.
Technical Parameters
G Series Transparent
| parameter | LED Transparency Display | |||||
| Pixel Pitch | 3.9*7.8mm | 7.8*7.8mm | 8*10mm | 10*10mm | 16*16mm | 20*20mm |
| Pixel Configuration | SMD1921/2020/1206 | SMD1921/2020/1206 | SMD1921/2727/1206 | SMD1921/2727/1206 | SMD3535/3120 | SMD3535/3120 |
| Transparency Rate | >70% | >75% | >80% | >80% | >85% | >90% |
| Pixels | 32256dots/m2 | 16384dots/m2 | 12500dots/m2 | 9216dots/m2 | 3096dots/m2 | 2304dots/m2 |
| Viewing Distance | 4m | 8m | 16m | 18m | 18m | 20m |
| Panel weight | 12kg/m2 | 16kg/m2 | 16kg/m2 | 18kg/m2 | 18kg/m2 | 18kg/m2 |
| Cabinet Material |
Aluminum/PC panel black/white |
Type box black/white |
Type box black/white |
Type box black/white |
Type box black/white |
Type box black/white |
| Panel Size | 1000x 500mm(W×H) | 1000x 500mm(W×H) |
1024x480mm/ 1024x640mm(W×H) |
1000x 500mm(W×H) |
1024x480mm/ 1024x640mm(W×H) |
1000x 500mm(W×H) |
| Max Consumption | 600w/M2 | 600w/M2 | 800w/M2 | 800w/M2 | 800w/M2 | 600w/M2 |
| Ave Consumption | 240w/M2 | 240w/M2 | 300w/M2 | 240w/M2 | 240w/M2 | 180w/M2 |
| Scan Mode | 1/7Scan | 1/8Scan | 1/4Scan | 1/4Scan | 1/1Scan | 1/1Scan |
| View Angle | 140°/110°（H/V） | |||||
| Refresh Rate | 3840 Hz | |||||
| Gray Scale | 14bit | |||||
| Using Environment | Indoor | |||||
| Brightness | 1200~6000Nits | |||||
| Control Mode | USB / HDMI / WIFI /Cable | |||||
| Support Sideo Format | MP4，AVI， WMV | |||||
| Lnput Voltage | AC 110-240V， 50/60Hz | |||||
| Humidity | 35%~85%(work),10%~90%(store) | |||||
| Temperature | 0°C~40°C(work) , - 20°C~60°C(store) | |||||
| Support Pole | Hanging/Stocking | |||||
| Packaging | Flight Case/Wooden Case | |||||
