R1 Series Straight

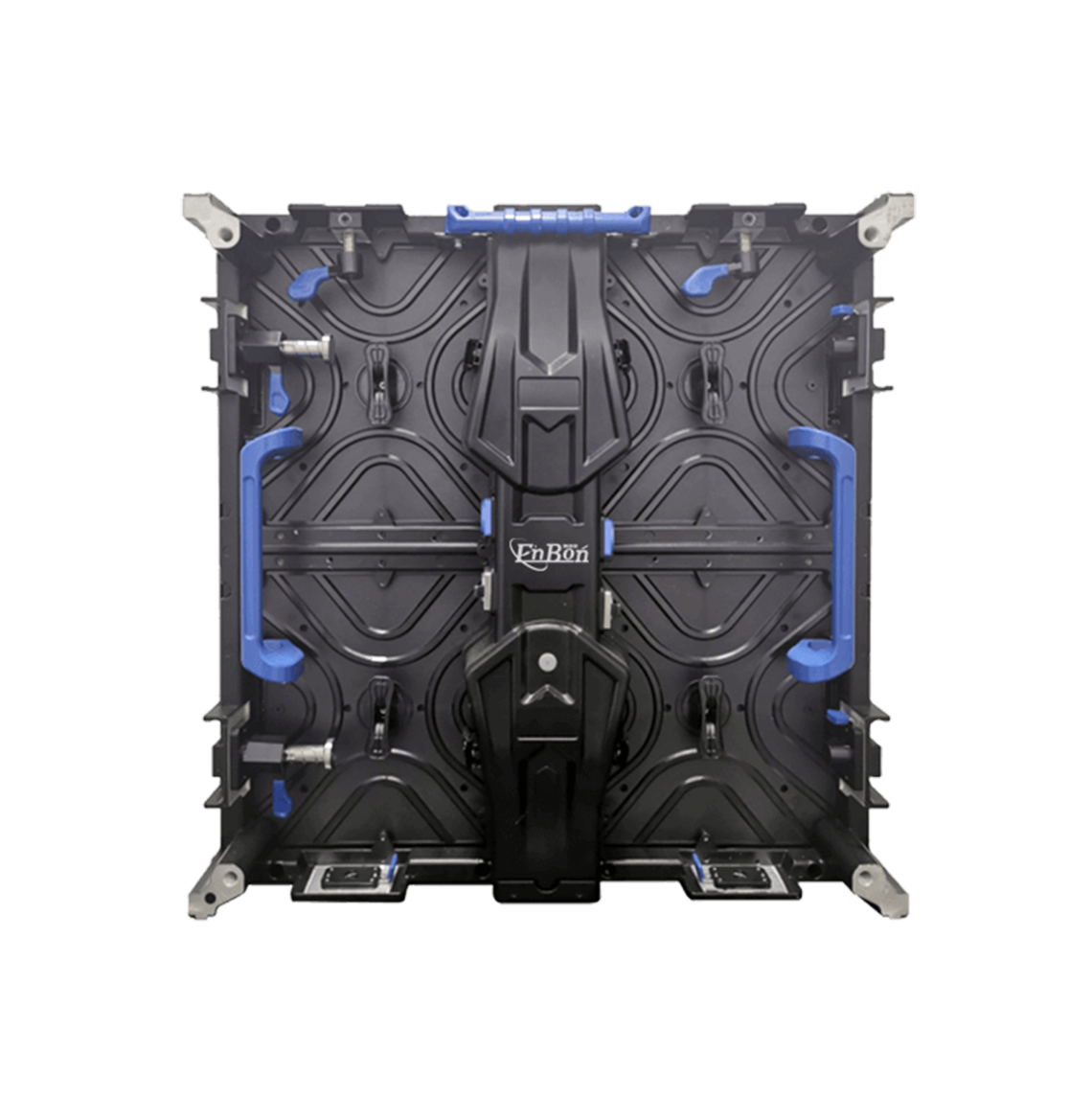

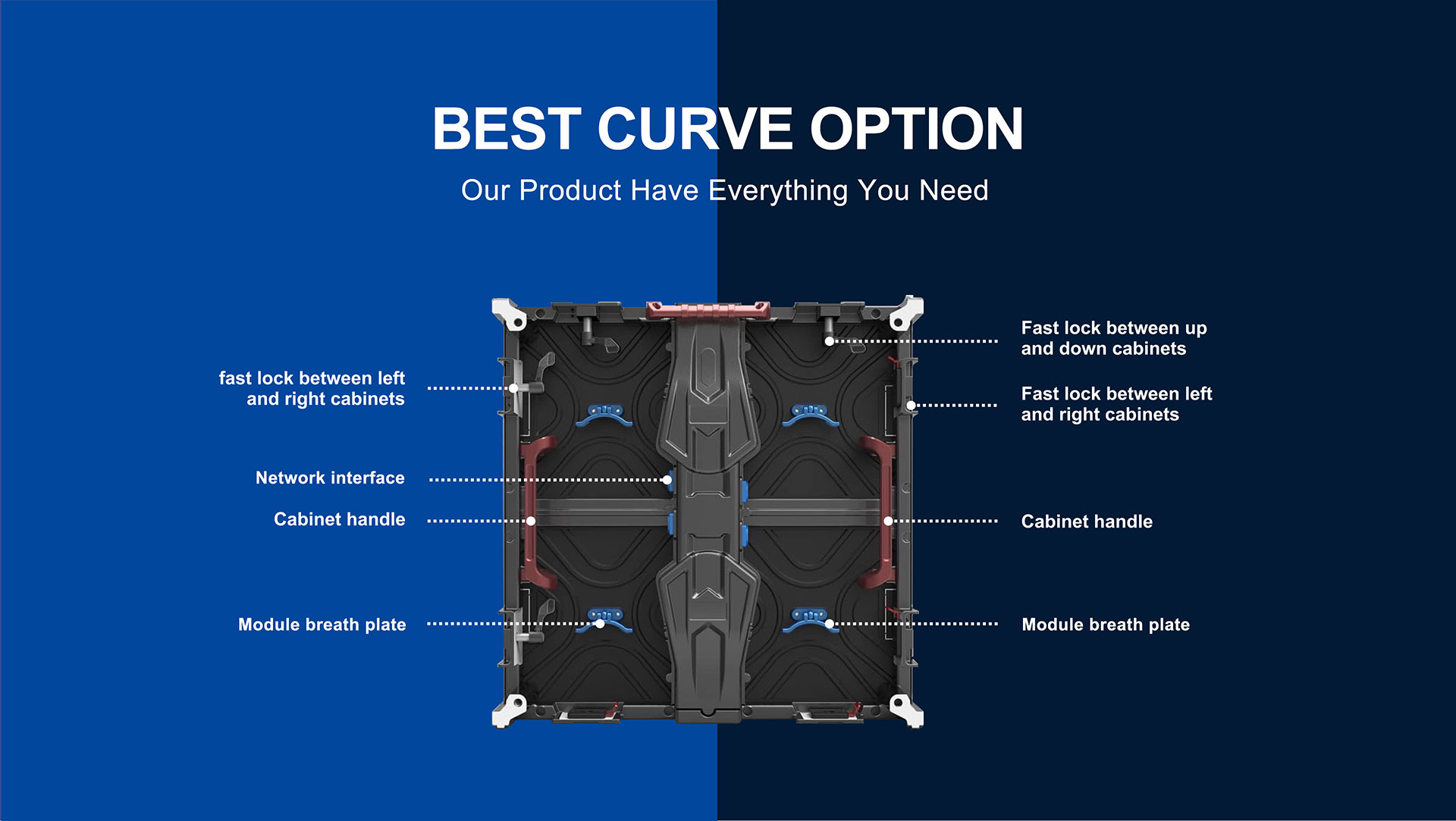

China Enbon led display manufacturer of R1 series rental screens.It has straight and curve options, curve angel is ±15°.It can be installed quickly by one-hand operation.The ergonomic design fits your hand shape, easy to grip the cabinet integrated
- Integrated power cabinet design saves maintenance time

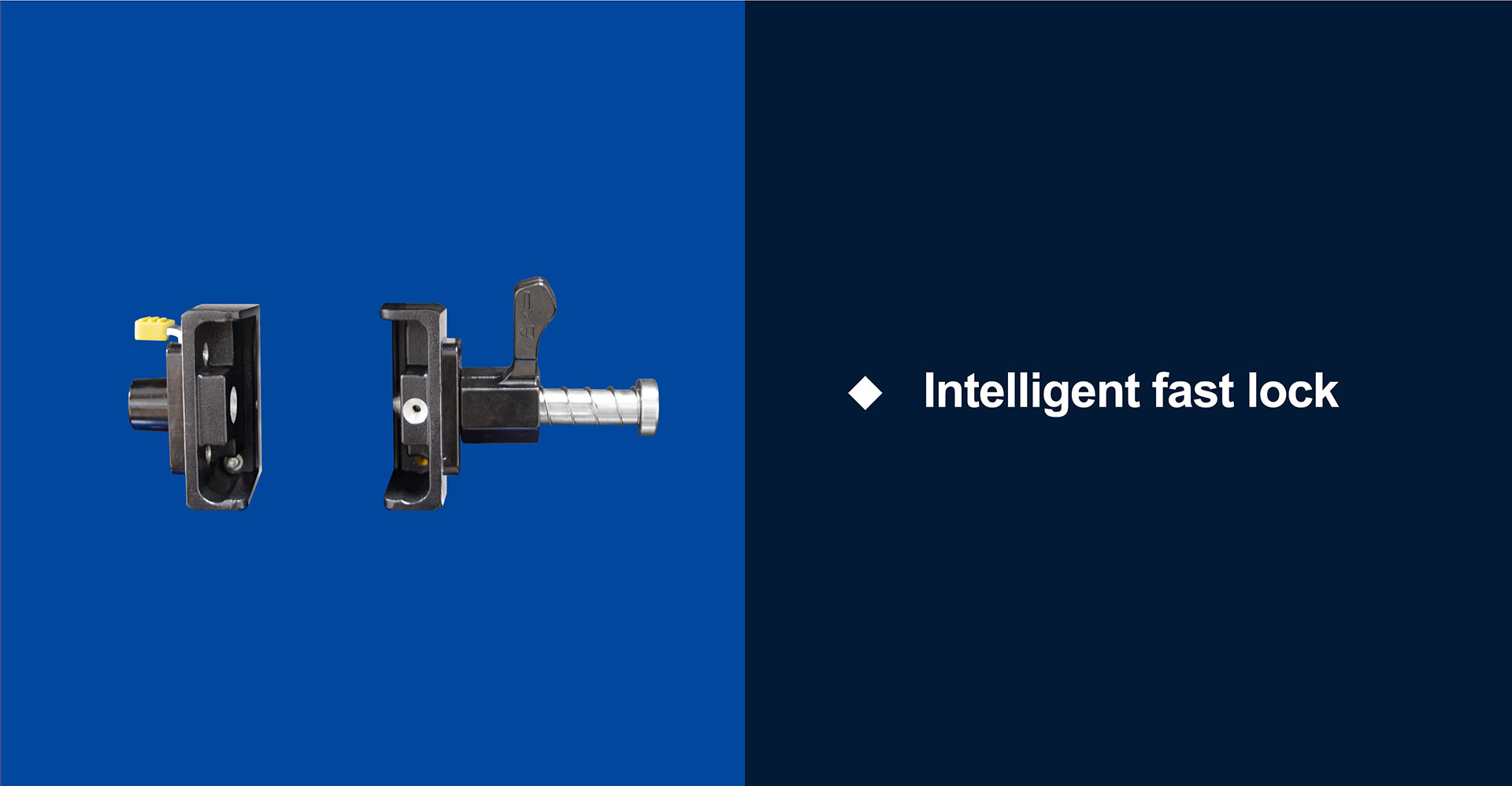

- Double quick lock design, more durable, single operation, quick installation and maintenance
- Modular design of power control cabinet, no wire is needed to connect with the module
- The wireless material distribution inside the power cabinet is clean and tidy, and the signal is stable
- The cabinet is light and thin

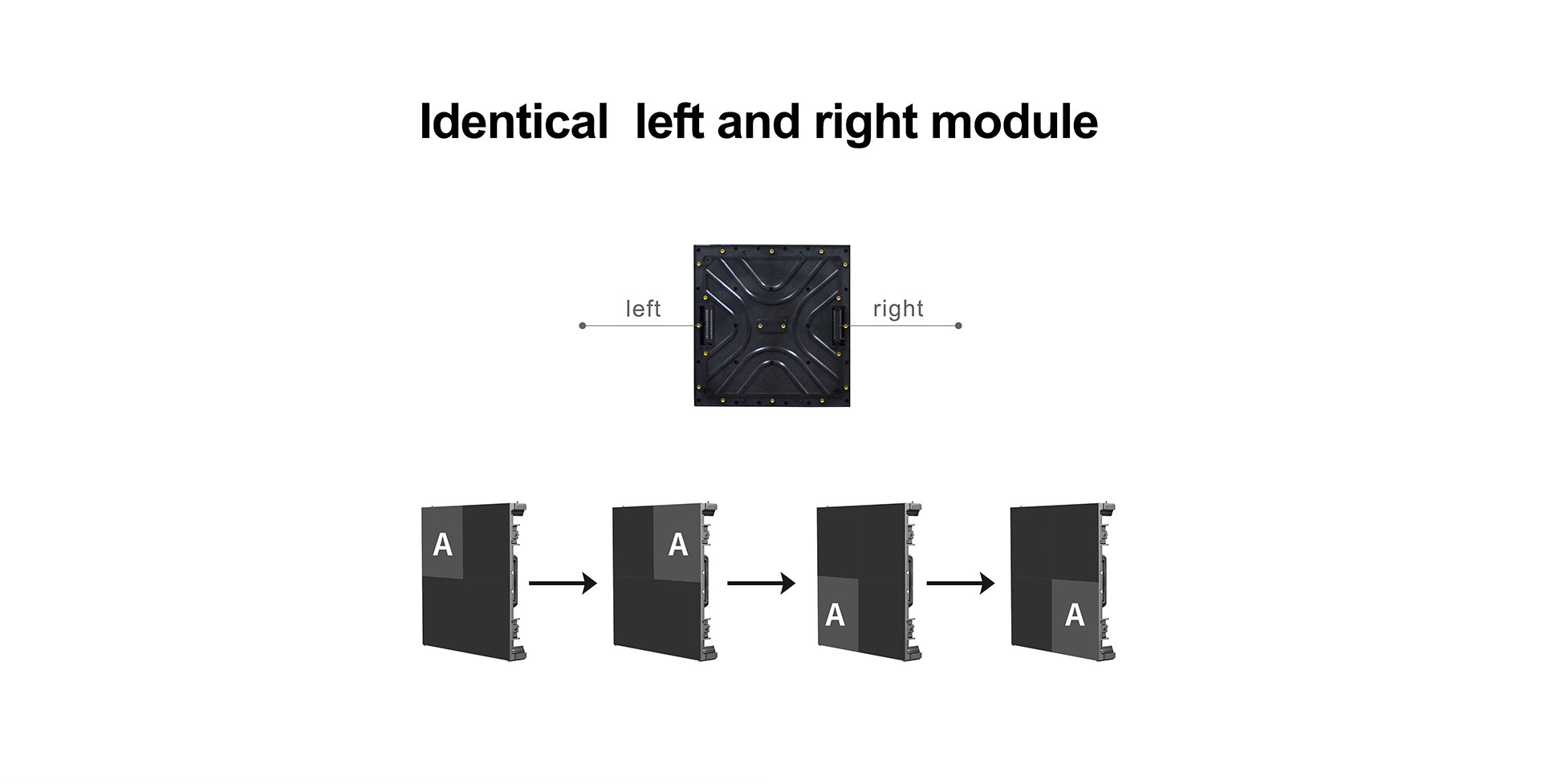

- Unique module design, support module left and right interchangeably

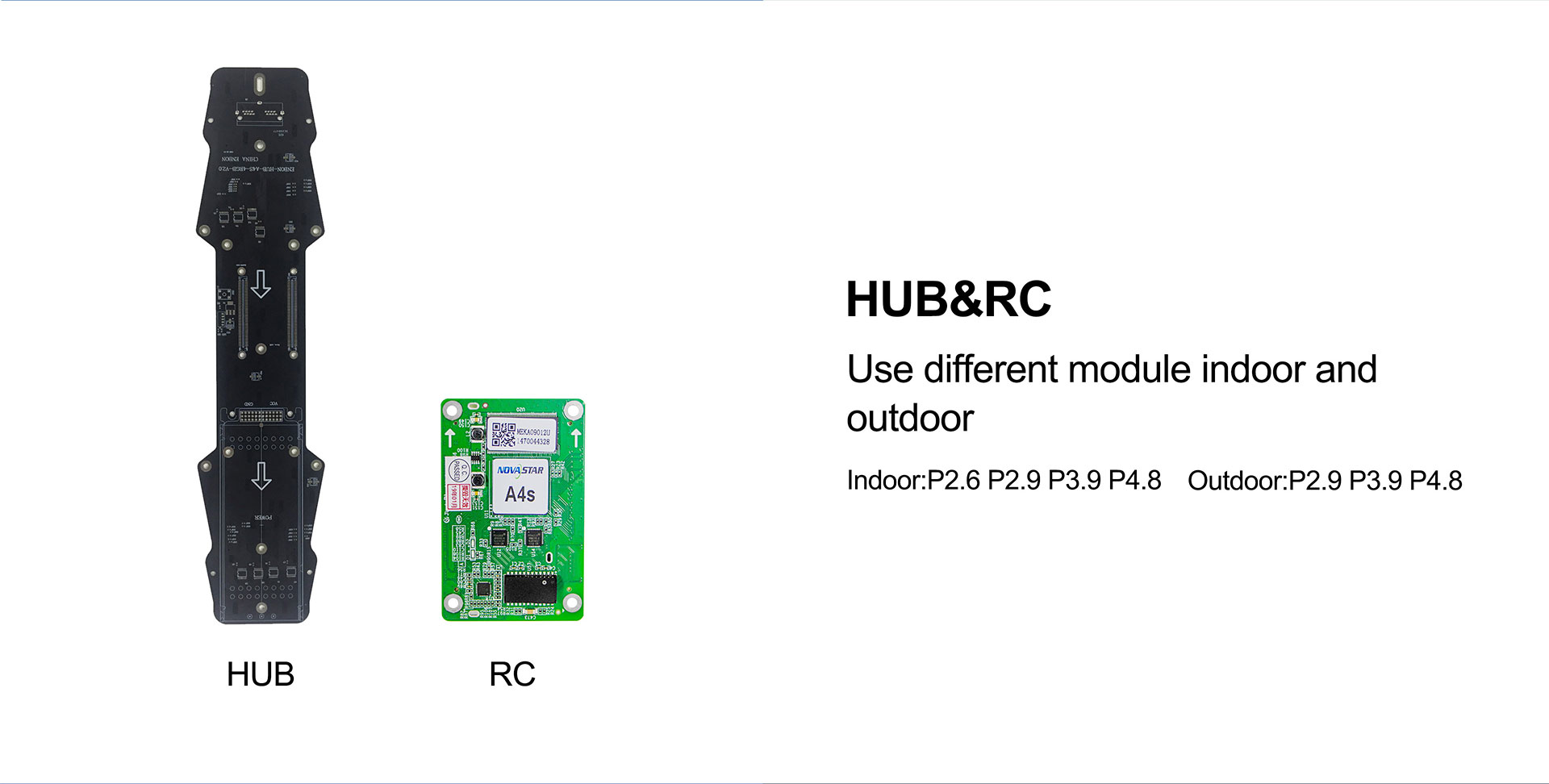

- Private design of PCB, no signal interference, 2.0mm thickness, stable performance
-
Mask private mold design, wide viewing angle, no reflection, showing better picture effect
Product Series Model
P2.6
P2.9
P3.9
P4.8
P3.9
P4.8
Technical Parameters
R1 Series Straight
| Indoor | Outdoor | |||||
| Pixel Pitch | 2.604 | 2.976 | 3.91 | 4.81 | 3.91 | 4.81 |
| LED lamp | SMD2020 | SMD2020 | SMD2020 | SMD2020 | SMD1921 | SMD1921 |
| Density | 147456dots/m2 | 112896dots/m2 | 65536dots/m2 | 43264dots/m2 | 65536dots/m2 | 43264dots/m2 |
| Brightness | 800-1000nits | 800-1000nits | 800-1000nits | 800-1000nits | ≥ 3500nits | ≥ 3500nits |
| IP rating | IP31 | IP31 | IP31 | IP31 | IP65 | IP65 |
| Cabinet Materiel | Die-casting Aluminum | Die-casting Aluminum | ||||
| Scan | 24scan | 21scan | 16scan | 13scan | 16scan | 13scan |
| Module weight | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg |
| Cabinet Weight | 7.5kg | 7.5kg | 7.5kg | 7.5kg | 8kg | 8kg |
| Module size | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*500mm | 250*500mm |
| Cabinet size | 500*500*85mm | 500*500*85mm | 500*500*85mm | 500*500*85mm | 500*500*85mm | 500*500*85mm |
| Module pixel | 96*96dots | 84*84dots | 64*64dots | 52*52dots | 64*128dots | 52*104dots |
| Cabinet pixel | 192*192dots | 168*168dots | 128*128dots | 104*104dots | 128*128dots | 104*104dots |
| Max Power | 500w/sqm | 500w/sqm | 500w/sqm | 500w/sqm | 550w/sqm | 550w/sqm |
| Average Power | 160w/sqm | 160w/sqm | 160w/sqm | 160w/sqm | 200w/sqm | 200w/sqm |
| Viewing Angle | Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg | |||||
| Control way | synchronous/asynchronous | |||||
| Brightness control | 256 level | |||||
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | |||||
| Work humidity | 10％ ～ 90％ | |||||
| Work temperature | ﹣20 ～﹢65℃ | |||||
Videos
Enbon Introduction video
Product video
Related cases video
Download
Related parameter documents
| r1-series-straight.pdf |
