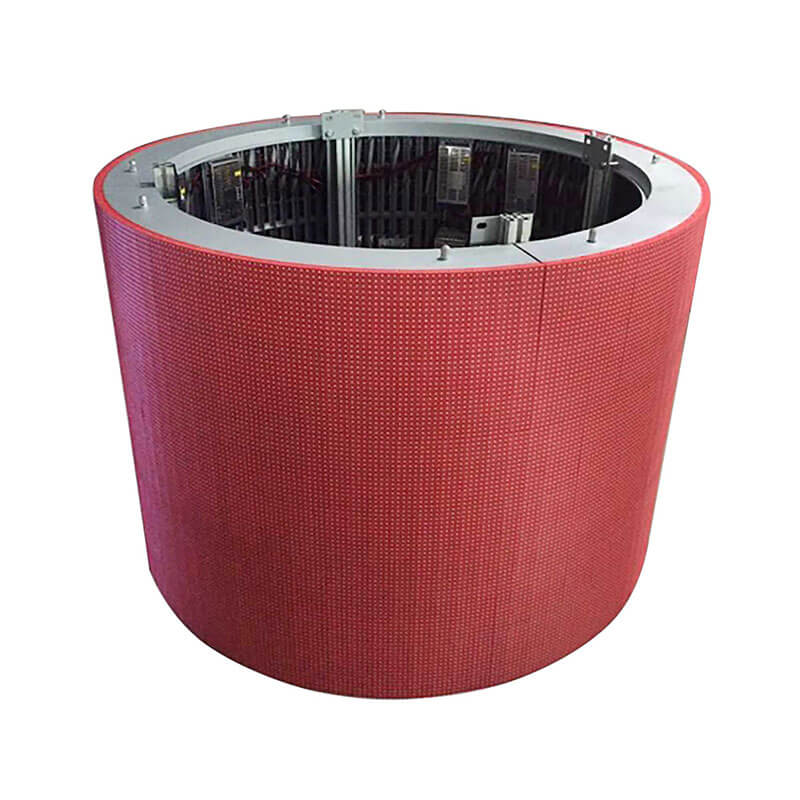

CR Series Cylindrical
360-degree multi-view, using rotation scanning mechanism and precise space-time combined control technology.
Satisfies the full 360-degree display of the entire image content.
Synchronized display of multiple pictures.
Product advantages:
- 360 degree omnidirectional view
- Wide-area perspective
- No dead angle of observation
- Waterproof design
- Customized and creative
- Diverse application
Technical Parameters
CR Series Cylindrical
| Unit Module | Item | Parameter |
| Model Number | SC-P5(8*64) | |
| Pixel Configuration | 1R1G1B | |
| Package | SMD1921/2727 | |
| Pixel Pitch | 5mm | |
| Brightness of White Balance | 5500-6000cd/m2 | |
| Diameter | ≥800mm | |
| Pixel Density | 40000dots/m2 | |
| Drive Type | Constant Drive | |
| Scan Mode | 1/8 | |
| Weight | 0.9±0.5kg | |

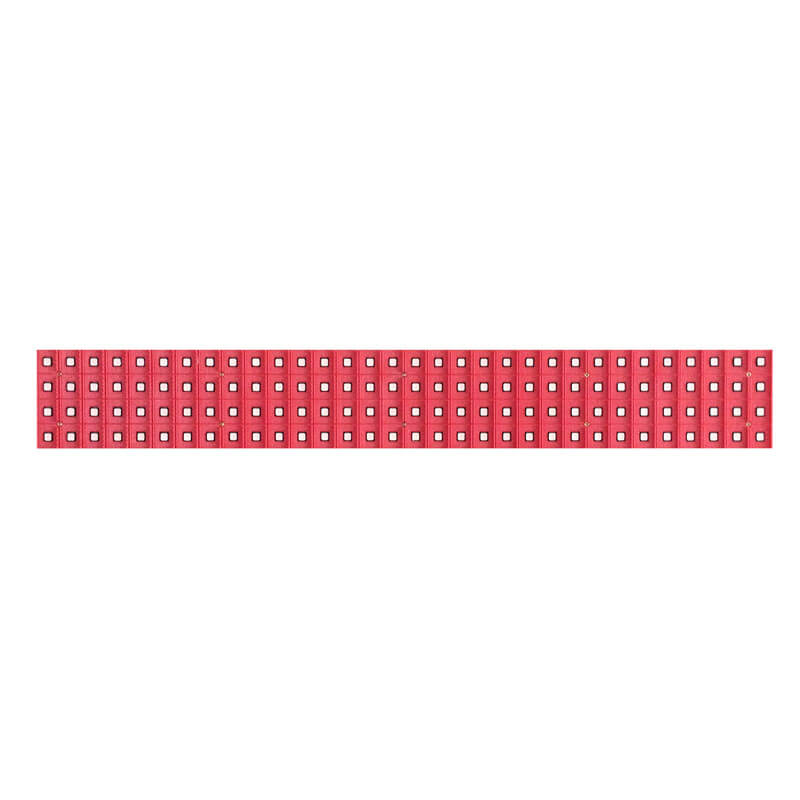

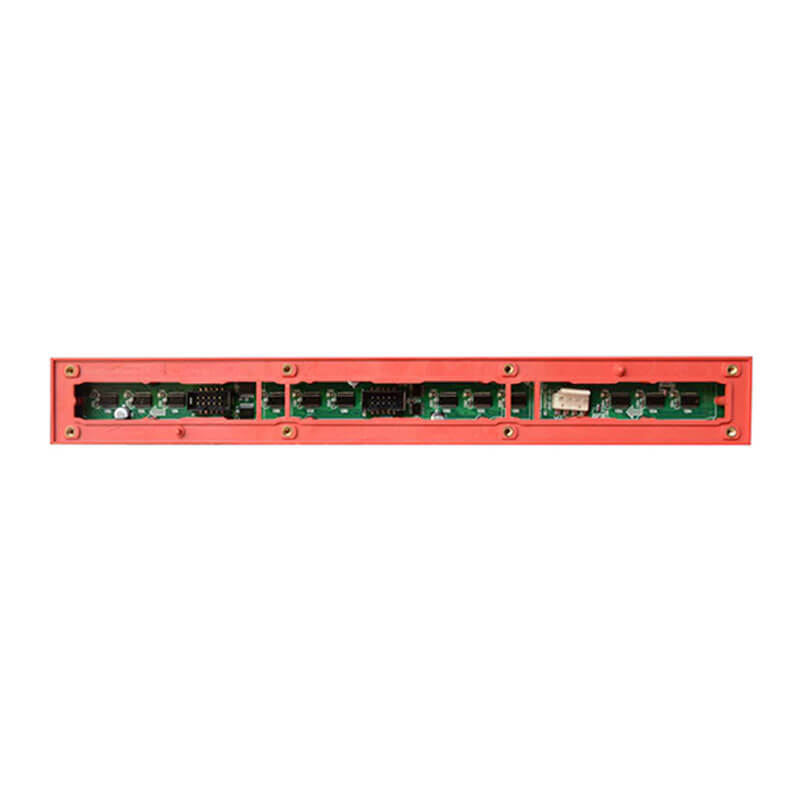

| Module Size | 40mm*320mm | |
| LED Cabinet | Pixel per Cabinet | 192dots(W)*192dots(H) |
| Refresh Frequency | ≥1920Hz | |
| Max Power | 1200w/m2 | |
| Average Power Consumption | 400w/m2 | |
| Grey Scale | 14-16bit | |
| Protection Level | IP65 | |
| Cabinet Material | Iron | |
| Best Viewing Angle | 140°(W) 120°(H) | |
| Best Viewing Distance | 5M-50M | |
| Relative Humidity | 10%-90% |
P5
| Unit Module | Item | Parameter |
| Model Number | SC-P10(4*32) | |
| Pixel Configuration | 1R1G1B | |
| Package | SMD3535 | |
| Pixel Pitch | 10mm | |
| Brightness of White Balance | 6500-7000cd/m2 | |
| Diameter | ≥800mm | |
| Pixel Density | 10000dots/m2 | |
| Drive Type | Constant Drive | |
| Scan Mode | 1/2 | |
| Weight | 0.9±0.5kg | |
| Module Size | 40mm*320mm | |
| LED Cabinet | Pixel per Cabinet | 96dots(W)*96dots(H) |
| Refresh Frequency | ≥1920Hz | |
| Max Power | 1200w/m2 | |
| Average Power Consumption | 400w/m2 | |
| Grey Scale | 14-16bit | |
| Protection Level | IP65 | |
| Cabinet Material | Iron | |
| Best Viewing Angle | 140°(W) 120°(H) | |
| Best Viewing Distance | 5M-50M | |
| Relative Humidity | 10%-90% |
P10
